3030 SMD LED Grow Light 0.5W 1W Full Spectrum For Indoor Farming Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|

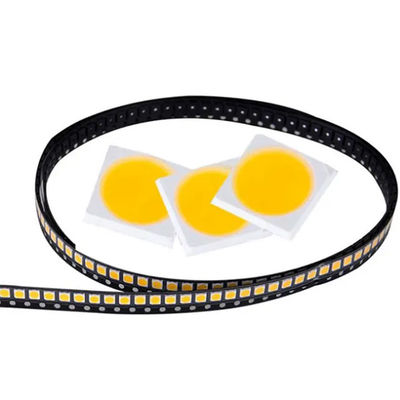

| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Plant Grow Lights | Power: | 1 W |
|---|---|---|---|
| Emitting Color: | Warm White | CCT: | 2700-3400K |
| Forward Current: | 350mA | Forward Voltage: | 2.8-3.4v |
| Luminous Flux: | 110-130LM | Viewing Angle: | 120° |
| Size: | 3.2*3.0*0.62mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 3030 Indoor LED Grow Light,Indoor LED Grow Light 0.5W,1W Full Spectrum SMD LED |
||
Product Description

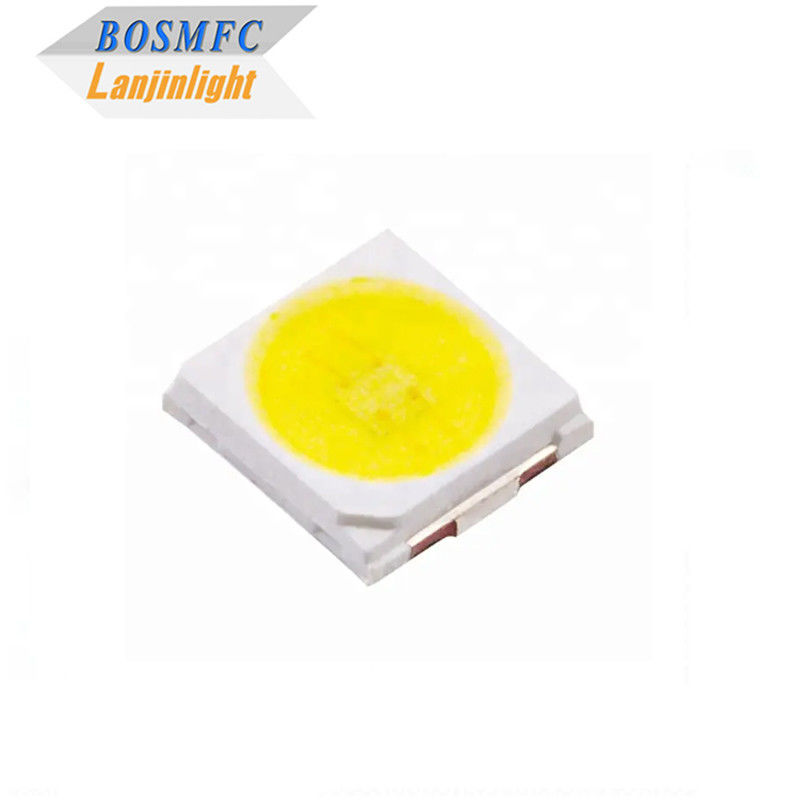

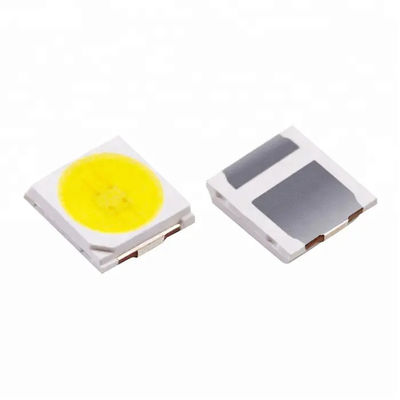

3030 SMD LED 0.5w 1w epistar chip full specturm LED for indoor farming plant light
3030 SMD LED---Lanjin catalog.pdf
The 3030 SMD LED is a high-power LED specifically designed for indoor farming plant lights. With its 0.5W or 1W power rating, it provides optimal illumination for plants during various growth stages.
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Color temperature | CCT | Warm white | 2700 | --- | 3400 | K | IF=350mA |
| Luminous intensity | Iv | Warm white | 110 | --- | 130 | LM | IF=60mA |
| Forward voltage | VF | Warm white | 2.8 | --- | 3.4 | V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | Warm white | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 3.2**3.0*0.62mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Top lighting, inter lighting and vertical farming
- Supplemental lighting and cultivation without natural daylight
- Photoperiodic lighting and photo-morphological control
- Urban farming and controlled environment farming
- Algae grow lights and agriculture lighting
- Agricultural lighting
- Fish & Poultry lighting
Full spectrum wavelength effects:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years , providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What payment terms are available?
A3: T/T,PayPal, Western Union and Secure Payment.
Q4: What about the lead time?
A4: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
