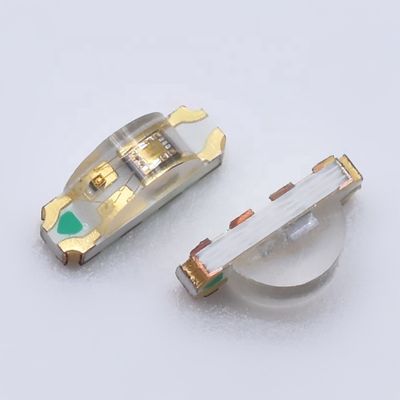

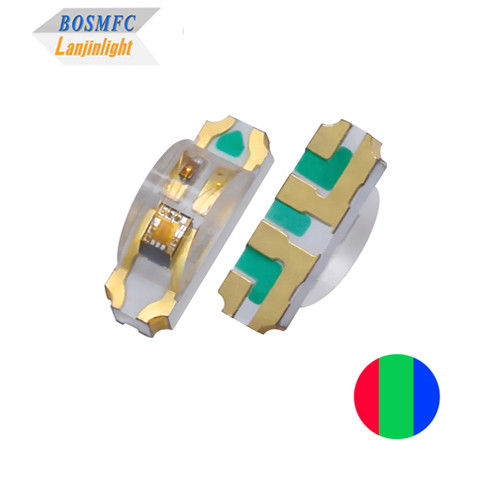

Side view 1206 Multi Color SMD LED for speaker Lighting RGB 1204 led chip With Internal IC Self Flashing
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 1206 RGB SMD LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 3000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-472 Nm | Forward Current: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 3.2*1.0*1.5mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 3000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 1206 multi color led lights,1206 smd Side view led,1204 led chip With IC |
||
Product Description
1204 RGB build-in IC chip 1206 side view RGB LED chip with Internal IC Self Flashing for Speaker Color Lighting
The 1206 RGB SMD LED is a compact surface-mount LED with a built-in IC that allows for fast and slow flashing effects. With its 1206 size, it is small and versatile, making it suitable for various applications. The LED chip provides full-color changing capabilities, emitting vibrant and dynamic light.
Features:
- Well-known Brand chip material
- More energy efficient than incandescent & halogen lamp
- Low power consumption & high intensity
- Long lifespan
- RoHS certified
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
200
500 180 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
3.5 | --- | 5.5 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*1.0*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 3000pcs/reel |
Applications:
- Office automation, home appliances, industrial equipment
- Mobile phone, digital camera, flash photoelectric display
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, LED backlight and SMD type indicators
- LED modules and LED strip lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs,including products and quantity,our sales team will reply you in one hour.
Q3. Can I have a sample order for led light?
A3: Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A4:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity .
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
