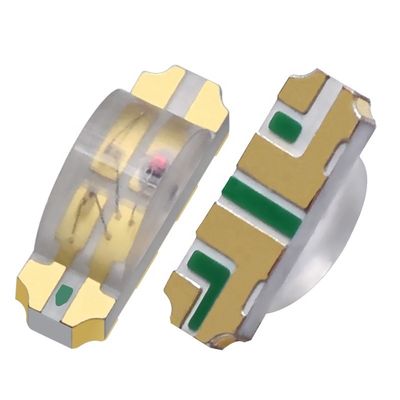

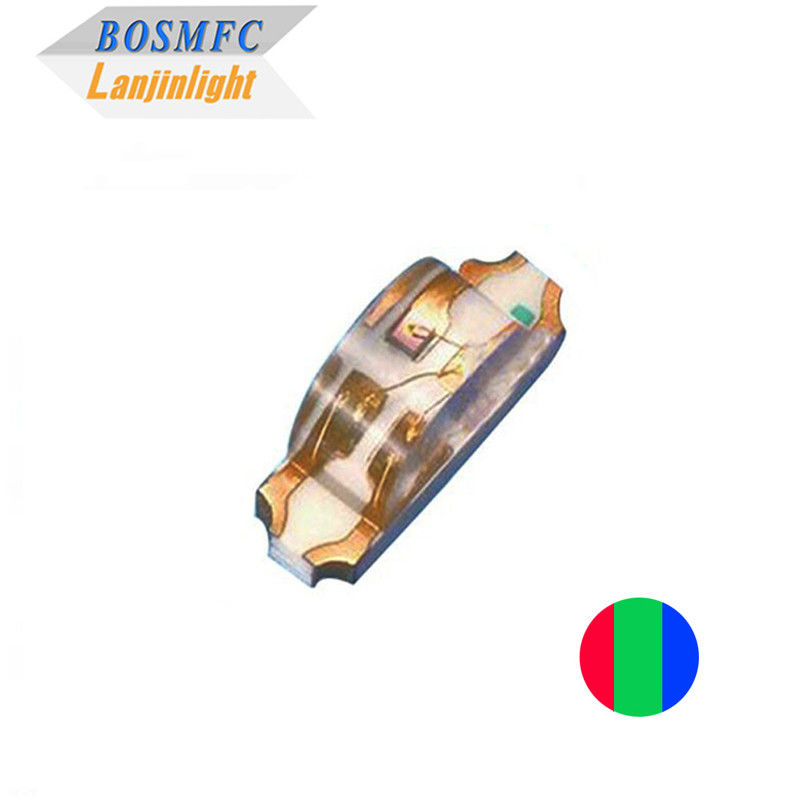

Side View 1206 RGB SMD LED 1.5T 2.0T Right Angle Side Mount 1204 Tri Color light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 1206 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 3000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 466-472 Nm |
| Luminous Intensity: | 110 / 400/ 80 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 3.0*1.0*1.5mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 3000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 1206 Tri Color light,Side View RGB SMD LED,1204 led rgb smd diode |
||
Product Description
Side view 1206 RGB LED 1.5T 2.0T right angle side mount 1204 tri-color led chip light factory sell
Features:
- Long lifespan 50,000 hours
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Low-temp & lead free reflow soldering
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
110
400 80 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.0*1.0*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 3000pcs/reel |
Applications:
- Architectural lighting in buildings, bridges, and other architectural structures.
- Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
- Automotive lamps and electronics, including traffic lights
- Entertainment and stage lighting
- Decorative lighting, including backlighting in dashboards and switches
- Full-color strip lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are a professional LED factory 18 years in Dongguan city, Welcome to your visiting!
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements, including product parameters, application, contact information, and quantity. Our professional team will respond to you within one hour.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How do you deal with the LED Failure issue?
A5: Our engineer will analyze the failure and find out the failure cause according to the failed
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
