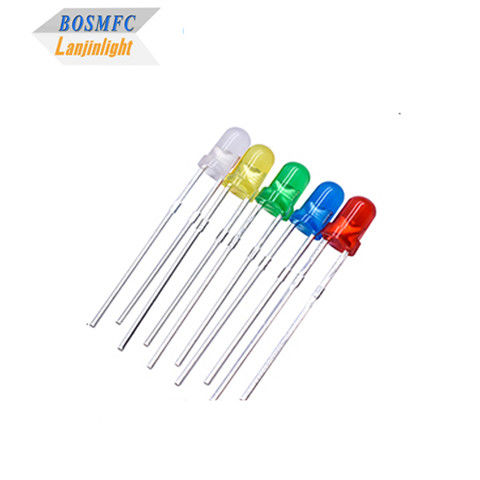

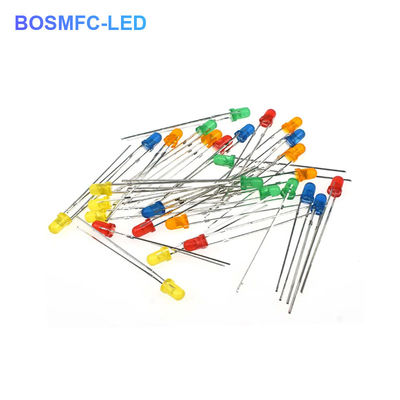

3mm Through Hole LED all colors F3 dip led Practical For Indoor Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | White/red/green/blue/yellow/amber/orange | Wavelength: | 620-625nm / 460-470 / 525-530 / 588-592 / 600-605 / CCT2200K- 12,000K |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4/2.8-3.4 |
| Size: | 3mm | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 1000pcs/bag |
| Lifetime: | 50000h | Operating Temperature: | -40℃~85℃ |
| Reverse Voltage: | 5V | Storage Temperature: | -40℃~100℃ |
| Highlight: | 3mm Through Hole LED,F3 dip led,F3 LED |
||
Product Description
3mm through-hole LED diode White/red/green/blue/yellow/amber F3 dip led factory price
Features:
- Long lifespan 50,000 hours
- 99.99% gold wire bonding
- Low power consumption, high intensity, uniform illumination
- Maintenance free, easy installation
- Low-temp & lead free reflow soldering
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue Yellow green Yellow Orange White |
620
520 466 568 584 600 2800K |
--- | 630
530 472 576 596 610 12,000K |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue Yellow green Yellow Orange White |
200
2000 250 80 300 200 2500 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue Yellow green Yellow Orange White |
1.8
2.8 2.8 1.8 1.8 1.8 2.8 |
--- | 2.4
3.4 3.4 2.4 2.4 2.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 30 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- Architectural lighting in buildings and other architectural structures.
- Mobile phones, digital cameras, flash photoelectric displays.
- Automotive lamps and electronics , traffic lights
- Entertainment and stage lighting
- Decorative lighting, indicator lights
- Indoor and outdoor commercial light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are a professional LED factory 18 years in Dongguan city, Welcome to your visiting!
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements, including product parameters, application, contact information, and quantity. Our professional team will respond to you within one hour.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: How do you ship the goods and how long it will take?
A: Generally we ship the goods to you door to door by DHL, UPS, FEDEX, TNT express.
It will take 2-4 working days. And Air transportation and Sea shipping is also available.
Q5: Is there any discount for bulk order?
A5: Yes, For bulk and customized products, we can provide discounts.
Q6: How do I process an order?
A6:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
