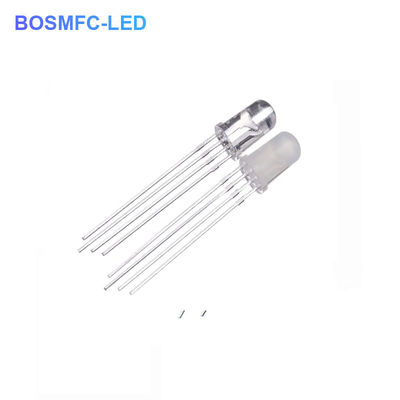

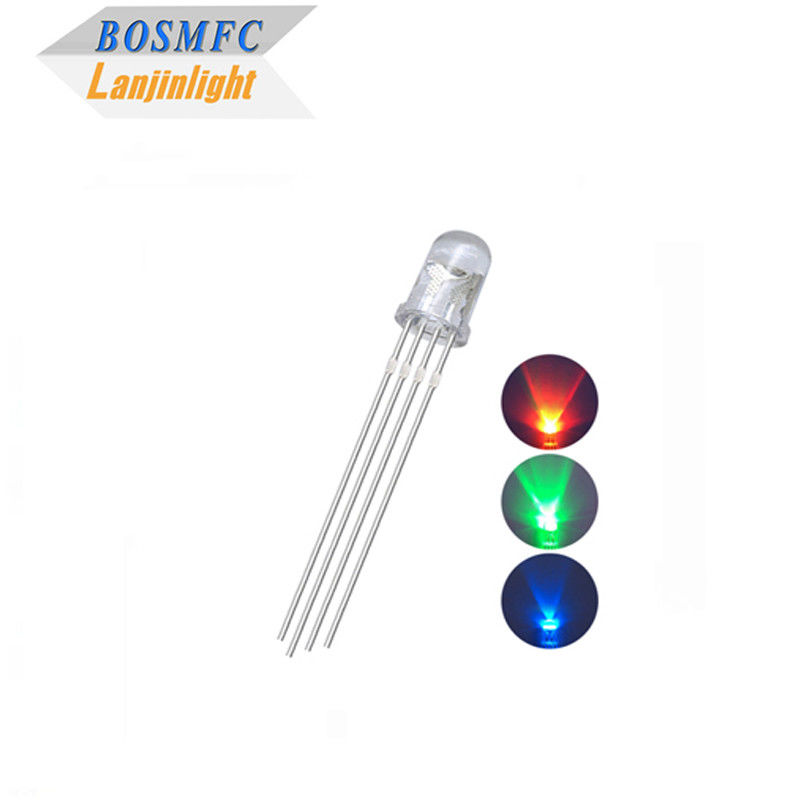

4 Pins RGB LED 5mm Through Hole 0.06W , Common Anode Water Clear Lens F5 Tri Color LED
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5mm RGB LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Packaging Details: | 500pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | Red/green/blue | Wavelength: | 620-625nm / 460-470 / 525-530nm |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v |
| Size: | 5mm | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 500pcs/bag |
| Lifetime: | 50000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 5mm LED Through Hole,4 Pins RGB LED,RGB Tri Color LED |
||
Product Description
Through-hole 5mm RGB Led lamp 4 Pins Common Anode Water Clear lens F5 LED light Tri-color
Features:
- Long lifespan
- 99.99% gold wire bonding
- Low light attenuation
- Efficient heat dissipation
- Low-temp & lead free reflow soldering
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 466 |
--- | 630
530 472 |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
220
2500 300 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 30 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5mm |
| Storage Temperature | －40~+100℃ | Packing | 500pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- LED module and LED strip light
- LED taillights, brake lights, license plate lamps, and in-vehicle lighting
- Automotive lamps and electronics , traffic lights
- LCD TV/monitor backlights
- Decorative lighting, indicator light
- Indoor and outdoor light
Materials:
