High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light

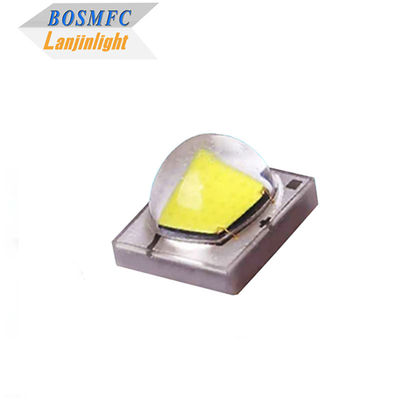

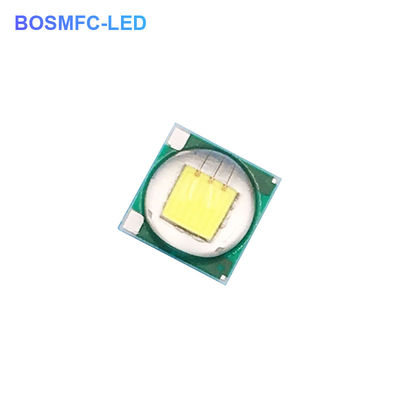

Large Image : High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	5w 3535 high power LED

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	1000pcs/reel, Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	500KK/month

Contact Now

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light

Description

Application:	Indoor & Outdoor Lighting	Power:	5W
Emitting Color:	White Light	Forward Current:	1000mA
Forward Voltage:	2.8-3.2v	Viewing Angle:	120°
Operating Temperature(℃):	-40 - +85	Storage Temperature(℃):	-40 - +100
Lifespan:	50,000 Hours	Warranty:	3 Years
Chip Brand:	San'an Chip / Epistar Chip	Package:	1000pcs/reel
Highlight:	Practical High Power LED SMD , 700mA High Power LED SMD , White Color 3535 LED Chip

High luminous intensity 400LM 1000mA 5w 3535 SMD High Power LED natural white led chip for Spot light

This is a high-power 3535 SMD LED chip designed for spotlights. It has a high luminous intensity of 400 lumens and operates at a current of 1000mA. The LED chip has a power rating of 5 watts and emits a natural white light. It is suitable for applications where a bright and focused light source is required, such as spotlights or directional lighting fixtures.

Features:

Energy-saving and environmentally friendly
Long lifespan of 50,000 hours
Fast delivery
3 years warranty
RoHS ,Reach available

Technical Parameters:

Electrical optical characteristics :(Ta=25°C)

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Color temperature	CCT	white	6000	---	7000	K	IF=1000mA
Luminous intensity	Iv	white	300	---	400	LM	IF=1000mA
Forward voltage	VF	white	2.8	---	3.4	V	IF=1000mA
Viewing angle			---	120	---	deg	IF=1000mA
Reverse current	IR	white	---	----	5	uA	IF=1000mA

Operation Temperature	－40~+85℃	Size	3.453.452.36mm
Storage Temperature	－40~+100℃	Packing	1000pcs/reel

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light 0

Applications:

Tunnel light, pedestrian bridge light
Swimming pool light, packing lot light
Stage light, spot light, down light
Corridor light, factory floor light
Automotive lamps

Materials:

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light 1

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light 2

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light 3

High luminous intensity 3535 SMD 400LM 1000mA 5w High Power LED natural white led chip for Spot light 4

FAQ:

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized. Lanjin focus on OEM & ODM service more than 18 years.

Q2: Can I get some samples for tests?

A2: Yes, we provide free sample to test.

Q3: Is there any discount for bulk order?

A3: Yes, we provide wholesale pricing for bulk orders and customized products.

Q4: What about the lead time?

A4: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.

Q5: How to process the order?

A5: 1. Let us know your requirements or application.

2. We will quote based on your requirements or our suggestions.

3. customer confirms the samples and places order, we will arrange production
