Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control

Certification
china Dongguan Lanjin Optoelectronics Co., Ltd. certification
china Dongguan Lanjin Optoelectronics Co., Ltd. certification
I'm Online Chat Now

Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control

Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control
Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control

Large Image :  Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control

Product Details:
Place of Origin: China
Brand Name: BOSMFC
Certification: Rohs, Reach
Model Number: 2020 RGB LED with IC
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: 4000pcs/reel, Reel+Anti-static bag+carton
Delivery Time: 5-15 days
Payment Terms: T/T,Western Union,paypal
Supply Ability: 500KK/month

Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control

Description
Application: Indoor / Outdoor Lighting Color: RGB Full Colors Changing Light
Wavelength: 620-630 / 520-530 / 460-470 Nm Forward Current: 12mA
Forward Voltage: 3.4-5.4v Size: 2.0*2.0*0.65mm
Warranty: 3 Years Chip Brand: San'an Chip / Epistar Chip
Package: 4000pcs/reel Lifetime: 50000h
Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~100℃
Highlight:

2020 rgb led indicator lamp

,

High brightness RGB LED

,

Built-in IC RGB LED

Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control
Super Bright Multi Color SMD LED Full Color 2020 RGB LED with IC

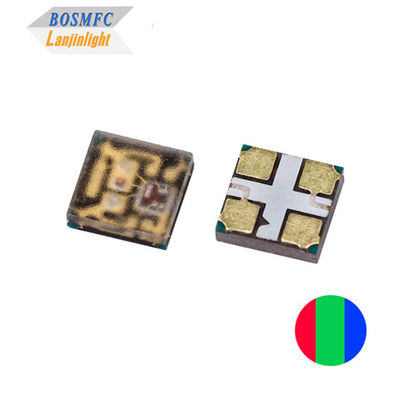

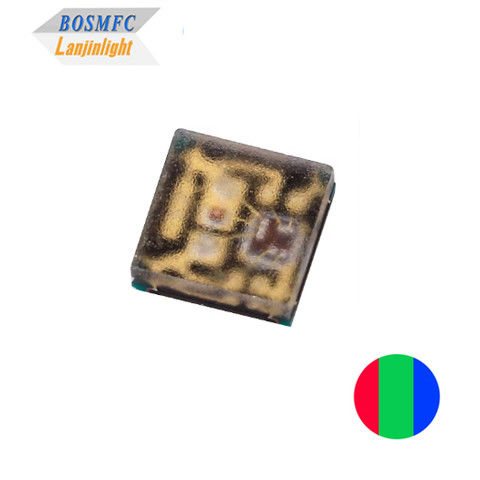

IC SK6812 Control Side View SMD 2020 RGB LED is a highly sought-after LED diode known for its exceptional performance. It features a compact side view SMD 2020 package and is equipped with a built-in SK6812 IC, which allows for precise control and dynamic lighting effects.
Key Features
  • Energy-saving and environmentally friendly
  • Long lifespan
  • Efficient heat dissipation
  • Low light attenuation
  • Easy installation
  • Strong anti-static ability
Technical Specifications
Parameter Symbol Color Min Typ Max Unit Test Condition
Wavelength λd Red 625 --- 635 nm IF=12mA
Green 525 --- 535
Blue 466 --- 472
Luminous intensity Iv Red 260 mcd IF=12mA
Green 780
Blue 450
Forward voltage VF Red 3.5 --- 5.5 V IF=12mA
Green 3.5 --- 5.5
Blue 3.5 --- 5.5
Viewing angle --- 120 --- deg IF=12mA
Reverse current IR --- --- 5 uA IF=12mA
Operation Temperature -40~+85℃ Size
Storage Temperature -40~+100℃ Packing
Size: 2.0*2.0*0.65mm 4000pcs/reel
Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 0 Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 1
Applications
  • Office automation, home appliances, industrial equipment
  • Mobile phone, digital camera, flash photoelectric display
  • Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures
  • Entertainment and stage lighting
  • Interior ambient lighting, accent lighting, and decorative lighting
  • LED module and LED strip light
Materials
Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 2
Company Information
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED, through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant temperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, switching power supply, decorative lighting, multi-speaker, DVD and other electronics. Lanjin always addict to the principle of "Quality and customer first", provide customized services according to customer's demand. LED light the world, Lanjin lights your life!
Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 3
Packing and Shipping
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 4 Super Bright Multi Color PLCC4 2020 RGB LED 12mA Built-in IC Individual Intelligent Control 5
Frequently Asked Questions
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, well come to your visiting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A2: Yes. We could offer free samples 1-50 pcs.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you provide customization and OEM service?
A4: Yes, we offer customization and OEM service, please tell us your requirements clearly.
Q5: Do you offer guarantee for the products?
A5: Yes, We offer 1-3 years warranty to your product.
Q6: How to proceed an order for led light?
A6: 1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and places deposit for formal order.
4. We arrange the production.
