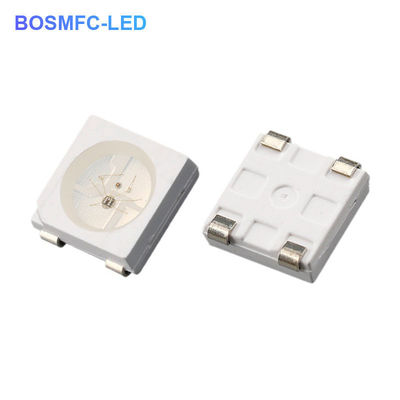

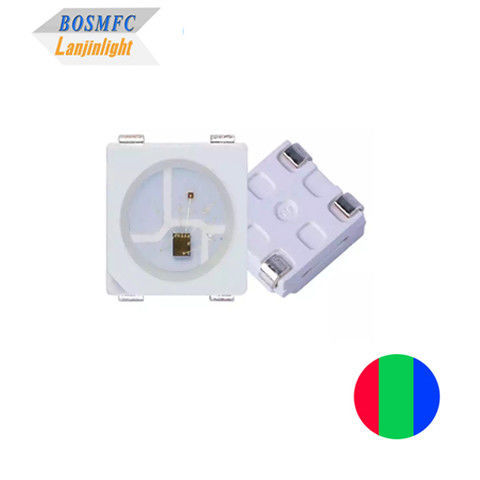

IC Buit-in 4pin Smart 5v SMD 5050 RGB SMD LED ws2813 Ws2812 PLCC4 tri-color Chip Led For Led display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 RGB LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-630 / 520-535 / 460-475 Nm | Forward Voltage: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 5.0*5.0*1.6mm |
| Warranty: | 2-3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 60,000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | ws2812 5050 smd rgb led chip,4 Pin SMD RGB Chip,IC Buit-in 4pin 5050 LED |
||
Product Description
Promotion Wholesale IC Buit-in 4pin 5v 5050 SMD RGB chip Led For Led Rgb Lighting
5050 Full color RGB SMD---Lanjin catalog.pdf
The Built-in IC SMD 5050 RGB LED is a high-quality LED diode manufactured by a reputable LED manufacturer in China with 18 years of experience. It features a compact SMD 3528 package and incorporates the SK6812 and WS2811 ICs, allowing for full-color illumination and versatile control options.
Features:
- Pure gold wire bonding
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 460 |
--- | 630
535 475 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
450
1800 450 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
3.5 | --- | 5.5 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*2.8*1.9mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Automobile luminous sign, magic LED handbag, LED smart women jewelry, dream color shoes
- Mobile phone, digital camera, flash photoelectric display
- Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
- LED flexible full-color pixel screen, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED color model, keyboard, smart bracelet, angel eyes, full color LED display
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. What chip you usually use for your led?
A: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q2. What about the lead time?
A:5-7 days for samples, 2-3 weeks for mass order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
