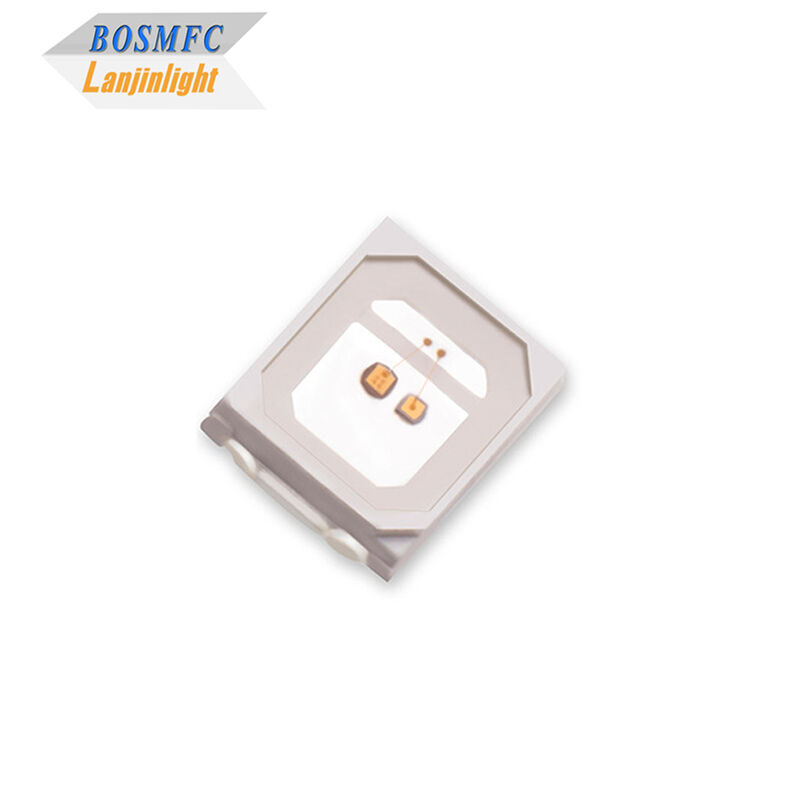

China VCSEL SMD LED 2835 Laser 660nm / 940nm for Hair Removal Devices
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Excellent heat dissipation
- Instant light (less than 100ns)
- RoHS and REACH certified
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Luminous intensity |
Iv |
660nm
940nm
|
— |
15
20 |
— |
mW |
IF=20mA |
| Dominant wavelength |
|
660nm
940nm
|
650
935 |
— |
665
945 |
nm |
IF=20mA |
| Forward voltage |
VF |
660nm
940nm |
2.0
1.8 |
— |
2.4
2.2 |
V |
IF=20mA |
| Viewing angle |
|
|
— |
28 |
— |
deg |
IF=20mA |
| Reverse current |
IR |
|
— |
— |
5 |
uA |
IF=20mA
|
Applications:
1.Laser freckle removal,
2.Laser Hair Removal,
3.Surveillance Night Vision Illumination,
4.Laser Ranging/Radar,
5.Drones,
6.Laser Posture Recognition,
7.Machine Vision etc.
