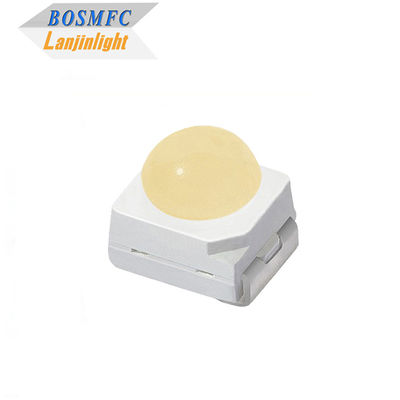

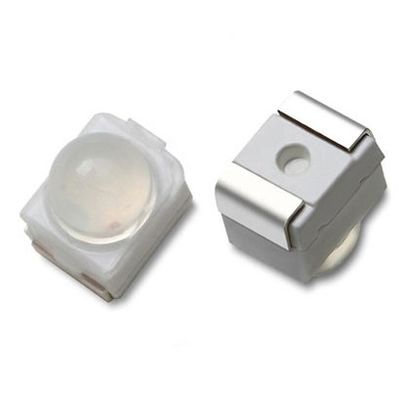

3528 SMD LED dome lens cool white warm white LED chip diode led lamp
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Color temperature |
CCT |
Warm white
Natural white
Cool white
|
2700
4000
6500
|
--- |
3400
5000
20,000
|
K |
IF=20mA |
| Luminous intensity |
Iv |
White |
1500 |
--- |
3000 |
mcd |
IF=20mA |
| Forward voltage |
VF |
White |
2.8 |
--- |
3.4 |
V |
IF=20mA |
| Viewing angle |
|
|
--- |
60 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
White |
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
3.5*2.8*3.3mm |
| Storage Temperature |
－40~+100℃ |
Packing |
2000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you provide OEM and ODM services?
A1: Yes, we offer both OEM and ODM services. We can customize products according to your specific requirements.
Q2: How can I request a quotation from you?
A2: Please leave us a message with details about the products and quantities you need. Our professional team will respond to you promptly.
Q3: Can I order samples of the LED lights?
A3: Yes, we welcome sample orders for testing and quality checking. We accept mixed samples as well.
Q4: What is the process for placing an order?
A4: Send us an inquiry email, We will respond to you for the samples order.
Q5: What is the lead time for orders?
A5: Samples usually require 3-5 days to prepare. The lead time for mass production depends on the order quantity and typically takes 1-2 weeks.
Q6: How do you ship the goods and how long does delivery take?
A6: We usually ship via DHL, UPS, FedEx, or TNT for faster delivery, which takes approximately 3-5 days to arrive. Airline and sea shipping options are also available.
