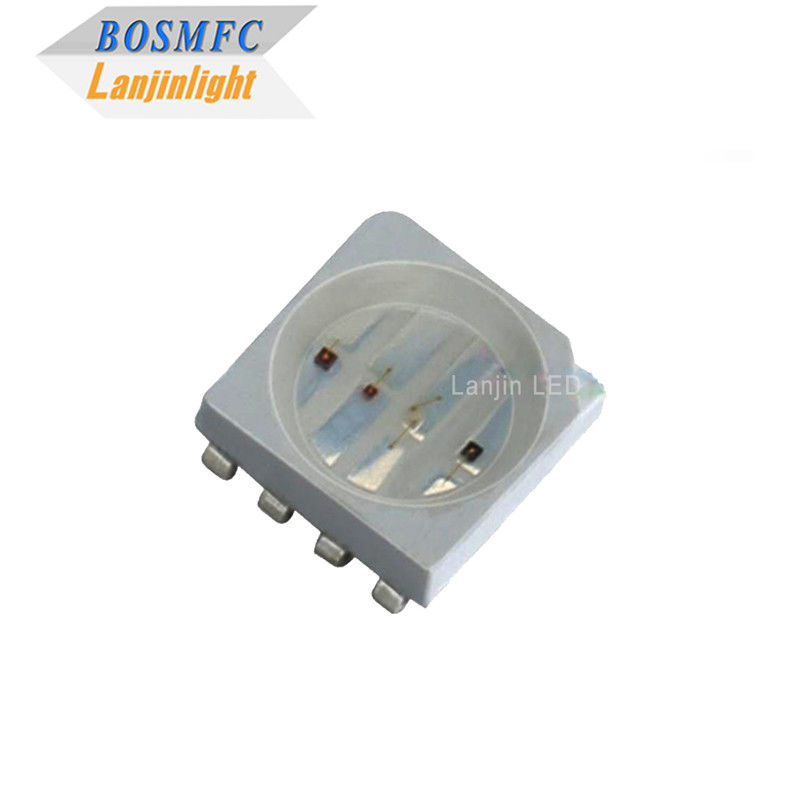

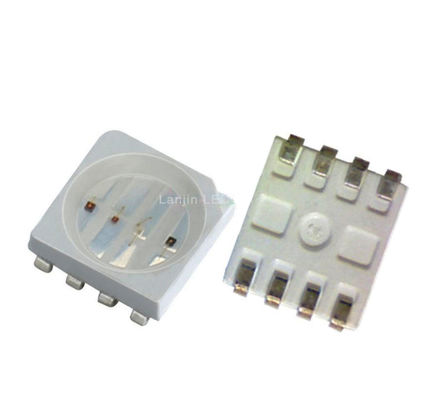

5050 IR LED Chip SMD Multi Color Combined 630nm 660nm 830nm 850nm 940nm For Medical Beauty Device Therapy
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 SMD LED IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Power: | 0.2 W | Emitting Color: | Infrared Led Light |
|---|---|---|---|
| Wavelength: | 630/660/830/850/940nm | Forward Current: | 60mA |
| Forward Voltage: | 1.8-2.4v/1.3-1.7v | Viewing Angle: | 120° |
| Size: | 5.4*5.0*1.6mm | Lifespan: | 50,000 Hours |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | ||
| Highlight: | 5050 IR LED Chip,Multi Color Combined IR LED Chip,940nm IR LED Chip |
||
Product Description
IR LED 5050 SMD multi-color combined 630nm 660nm 830nm 850nm 940nm led chip for medical beauty device therapy
The IR LED 5050 SMD (Surface Mount Device) you mentioned is a type of light-emitting diode that emits infrared (IR) light at multiple wavelengths. In the case of the specific LED you described, it combines the emission of light at 630nm, 660nm, 830nm, 850nm, and 940nm wavelengths. This multi-color combination is often used in medical and beauty devices for therapy purposes.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 630nm
660nm 830nm 850nm |
--- |
1.6 1.4 8 8 |
--- | LM
mW mW mW |
IF=20mA |
| Dominant wavelength | 630nm
660nm 830nm 850nm |
620
650 820 840 |
--- | 635
665 840 860 |
nm | IF=20mA | |
| Forward voltage | VF | 630nm
660nm 830nm 850nm |
1.8
1.8 1.3 1.3 |
--- | 2.4
2.4 1.7 1.7 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.6mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Customized Multi-color combined: 630+660+850nm ;
415+660+830+850nm;
660+780+810+850+940nm
Applications:
1. Beauty therapy lamp.
2.Wound healing lamp
3. Oxygen injector
4. Hair remover
3. Other medical device, like Oximeter
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
