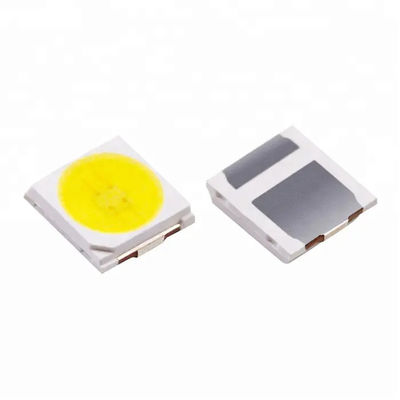

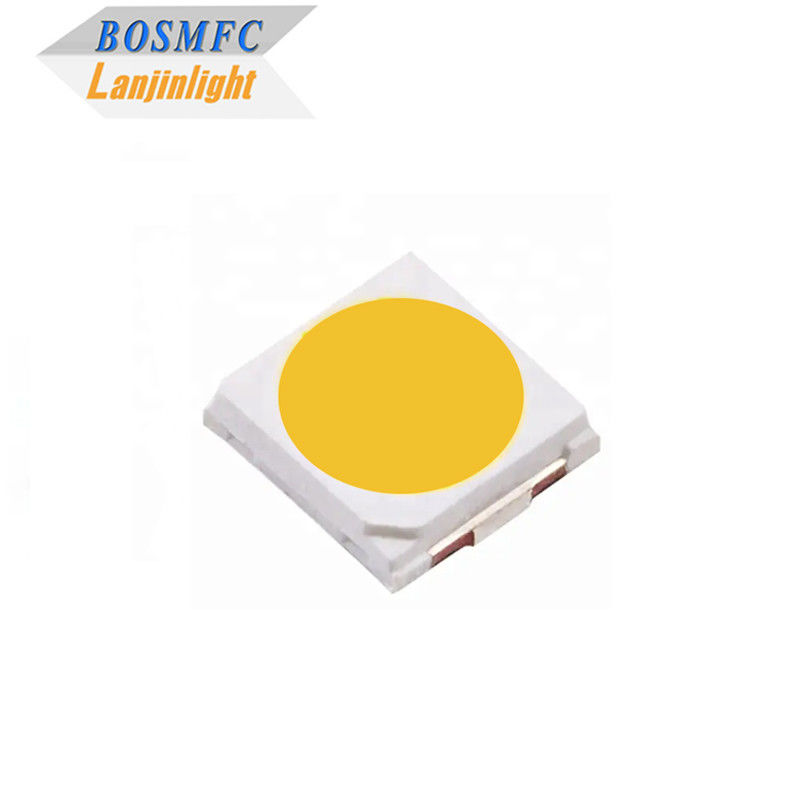

110-140lm white 3030 Top SMD LED 1W Multi Function For outdoor Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|

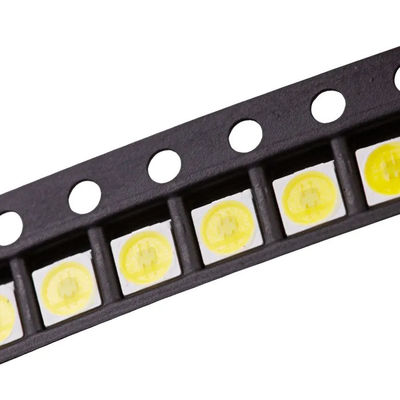

| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 1 W |
|---|---|---|---|
| Emitting Color: | Warm White, Natural White, Cool White | Color Temperature: | 2700-12,000K |
| Forward Current: | 350mA | Forward Voltage: | 2.8-3.4v |
| Luminous Flux: | 110-140lm | Viewing Angle: | 120° |
| Size: | 3.2*3.0*0.62mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 3030 SMD LED,3030 LED Chip,3030 Top SMD LED |
||
Product Description
3030 SMD LED 1w Cool white light Lanjin LED manufacturer for high power LED lamp
Features:
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Color temperature | CCT | warm White
Natural White Cold White |
2700
4000 6500 |
--- | 3400
5000 20,000 |
K | IF=350mA |
| Luminous intensity | Iv | White | 110 | --- | 140 | LM | IF=350mA |
| Forward voltage | VF | White | 2.8 | --- | 3.4 | V | IF=350mA |
| Viewing angle | --- | 120 | --- | deg | IF=350mA | ||
| Reverse current | IR | White | --- | ---- | 5 | uA | IF=350mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*3.0*0.62mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer of SMD LED, through-hole LED and digital LED display, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Do you supply OEM,ODM service?
A2: YES,absolutely it can be realized.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our sales team will reply you in one hour.
Q4. Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality.
Q5. What about the lead time?
A5:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity .
Q6. How do you ship the goods and how long does it take to arrive?
A6: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
