1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle

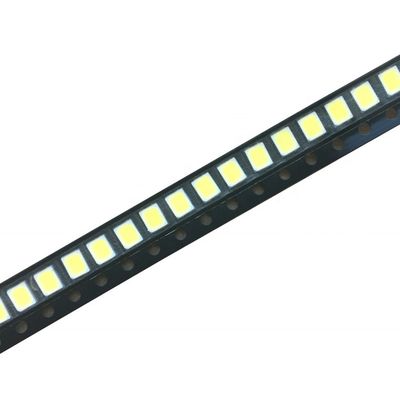

Large Image : 1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	2835 SMD LED

Payment & Shipping Terms:

Minimum Order Quantity:	4000pcs
Packaging Details:	4000pcs/reel, Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	500KK/month

Contact Now

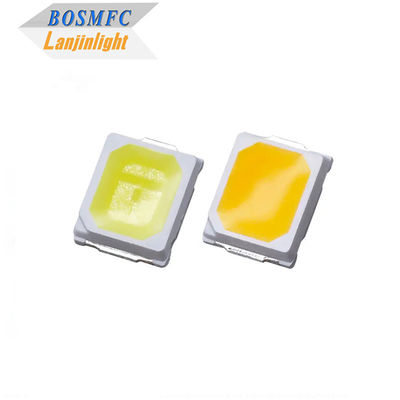

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle

Description

Application:	Indoor & Outdoor Lighting	Power:	1 W
Emitting Color:	Warm White, Natural White, Cool White	Color Temperature:	2700-12,000K
Forward Current:	350mA	Forward Voltage:	18-18.4v
Luminous Flux:	110-140lm	Viewing Angle:	120°
Size:	2.83.50.8mm	Color Rendering Index (Ra):	85
Operating Temperature(℃):	-40 - +85	Storage Temperature(℃):	-40 - +100
Lifespan:	50,000 Hours	Warranty:	2 Years
Chip Brand:	San'an Chip	Package:	4000pcs/reel
Highlight:	2835 SMD LED , 2835 LED Chip , 2835 LED Light

2835 SMD LED 1w 18v high voltage White light LED factory price for LED lamp

2835 SMD LED---Lanjin catalog.pdf

The 2835 SMD LED is a high-quality LED chip diode designed for LED lamp applications. With a power rating of 1W and a high voltage of 18V, provides bright and efficient white light illumination.

Features:

Energy saving and environmental protection
Long life span
Good heat dissipation
Low light attenuation
Easy installation
Strong anti-static ability
RoHS certification

Technical Parameters:

Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Color temperature	CCT	warm White	2700	---	3400	K	IF=350mA
		Natural White	4000		5000
		Cold White	6500		20,000
Luminous intensity	Iv	White	110	---	140	LM	IF=350mA
Forward voltage	VF	White	18	---	18.4	V	IF=350mA
Viewing angle			---	120	---	deg	IF=350mA
Reverse current	IR	White	---	----	5	uA	IF=350mA

Operation Temperature	－40~+85℃	Size	2.83.50.8mm
Storage Temperature	－40~+100℃	Packing	4000pcs/reel

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle 0

Applications:

Indoor and outdoor commercial light
LED backlight and SMD type indicator
LED module and LED strip light
Decoration light, backlight in dashboards.
Auto lamp, automotive electronics, traffic lights
Mobile phone, digital camera, flash photoelectric display, backlight display
LED Taillight, LED Brake Light ,In-vehicle lighting

Materials:

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle 1

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle 2

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle 3

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle 4

FAQ:

Q1: Are you a factory or a trade company?

A1: We're professional LED manufacturer 18 years and providing one-stop OEM & ODM service to all partners all over the world.

Q2: Can I get some samples for tests?

A2: Yes, we welcome sample order to test and evaluate our LED quality.

Q3: What payment term do you accept?

A: We accept T/T, Paypal, Western Union .

Q4: What about the lead time?

A4: It depends on the order quantity. In general, lead time is about 10-15 working days. For standard samples, the delivery could be 3 days.

Q5: How to process the order?

A5: 1. Let us know your requirements or application.

2. We will quote based on your requirements or our suggestions.

3. customer confirms the samples and places order, we will arrange production
