12mA 0807 RGB LED Built In IC 5v Anti Static 0805 Multicolor LED SMD
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 0807 RGB SMD LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|

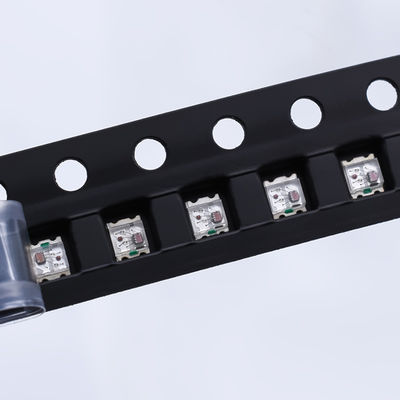

| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-472 Nm | Forward Current: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 2.0*1.7*0.8mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 5000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 0807 RGB LED Built In IC,0807 multi color flashing led light,12mA RGB LED |
||
Product Description

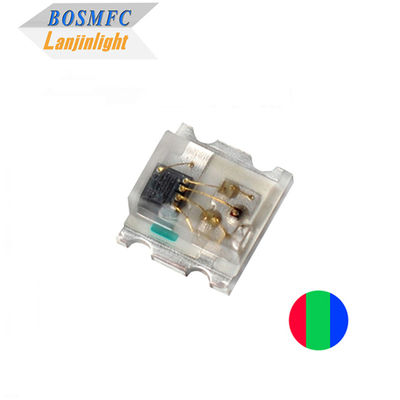

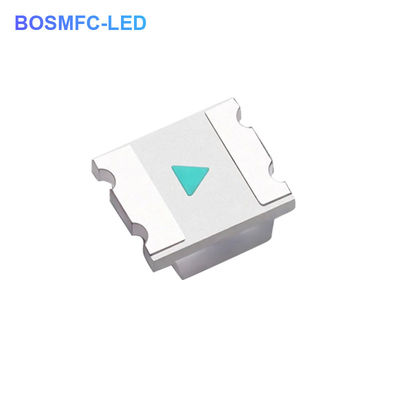

0807 RGB SMD LED Built-in IC fast and slowly flashing 0805 RGB smd led chip full colors changing light diode
The 0807 RGB SMD LED is a compact surface-mount LED with a built-in IC that allows for fast and slow flashing effects. With its 0805 size, it is small and versatile, making it suitable for various applications. The LED chip provides full-color changing capabilities, emitting vibrant and dynamic light.
Features:
- Long lifespan 50,000 hours
- Pure gold wire bonding
- Low-temp & lead free reflow soldering
- Strong anti-static ability
- Low Voltage DC operated)
- Energy-saving
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
200
500 180 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
3.5 | --- | 5.5 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 2.0*1.7*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Applications:
- Office automation, home appliances, industrial equipment
- Mobile phone, digital camera, flash photoelectric display
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, LED backlight and SMD type indicators
- LED modules and LED strip lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized as customer's requirements.
Q2: How can I get a quotation from you?
A2: Please provide us with detailed requirements or pplication, Our sales team will respond to you in one hour.
Q3: What payment terms do you accept?
A: We accept T/T, Paypal, Western Union .
Q4. Can I have a sample order for led?
A4: Yes, we welcome sample order to test . Mixed samples are acceptable.
Q5. What about the lead time?
A5:Sample needs 3-5 days, mass production time needs 2-3 weeks .
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements.
3.Confirm the samples and place order. We will arrange production .
