Programmable 5V IC driving SMD 5050 RGBW LED Chip 4 In 1 Practical For IC SK6812
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 RGBW SMD LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGBW |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-472 Nm & White Color | Forward Current: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 5.4*5.0*1.6mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | supplier led car music rhythm lamp multi color led,5v LED with IC,SK6812 5050 SMD RGBW LED |
||
Product Description

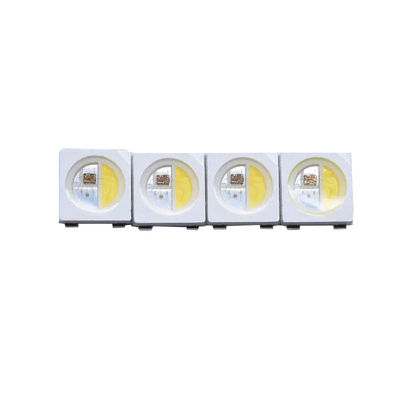

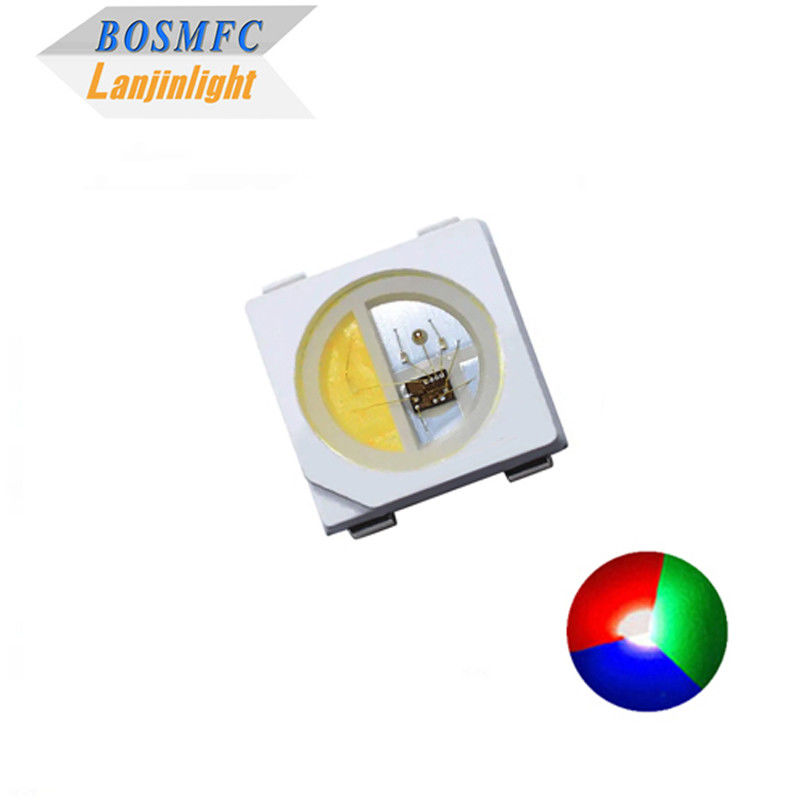

China LED Manufacturer SK6812 Programmable 5050 RGBW SMD 4 in 1 IC Build-in full colors LED Chip Diode
The SK6812 Programmable 5050 RGBW SMD LED is a high-quality LED diode manufactured by a leading LED manufacturer in China. It features a 4-in-1 IC built-in design, combining red, green, blue, and white LEDs in a single compact package. This allows for full-color illumination as well as the option to produce pure white light.
Features:
- Long lifespan
- Pure gold wire bonding
- Low-temp & lead free reflow soldering
- Maintenance free, easy installation
- Low Voltage DC operated
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
625
525 466 CCT6500K |
--- | 635
535 472 CCT10000K |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue White |
500
2000 500 2000 |
mcd | IF=12mA | ||
| Forward voltage | VF |
|
3.5 | --- | 5.5 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.6mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- LED dream color strip, portable fantasy audio, computer chassis, fan decoration light
- Mobile phone, digital camera, flash photoelectric display
- Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
- LED color model, keyboard, smart bracelet, angel eyes, full color LED display
- Interior ambient lighting, accent lighting, and decorative lighting
- Dream color shoes and all other color LED lighting application.
