2023 hot sell IC SK6812 control side view SMD 4020 RGB LED DC5V 4pin Buil-in IC SK6812
side view SMD 4020 RGB LED---Lanjin catalog.pdf

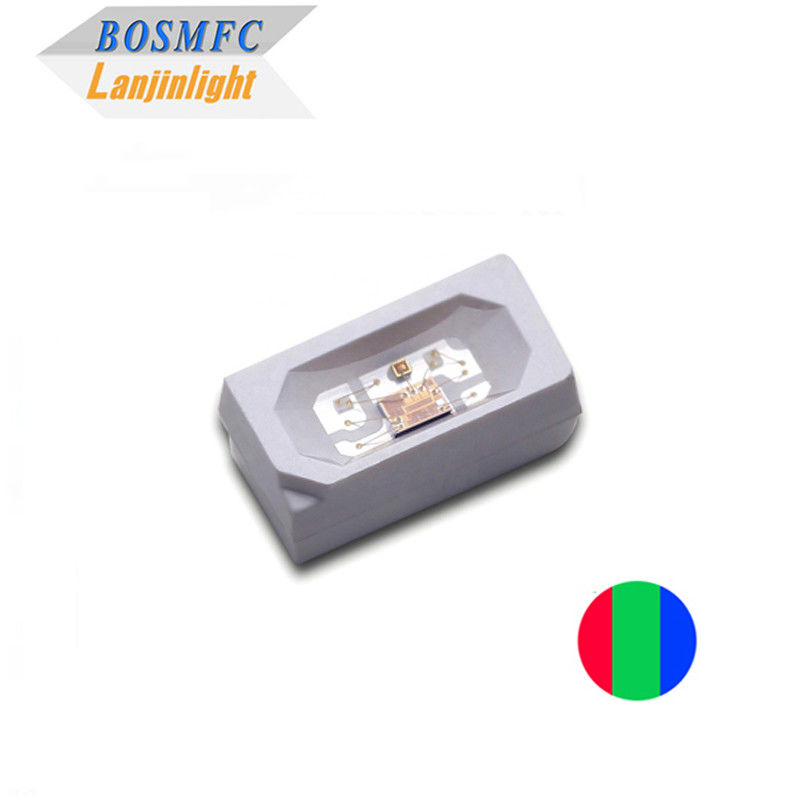

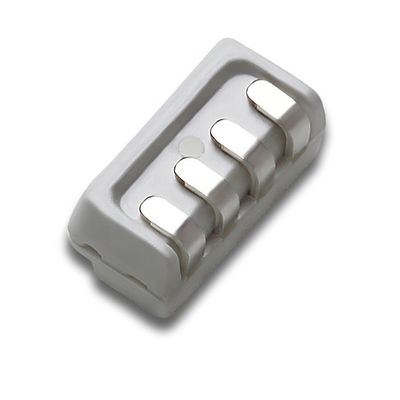

IC SK6812 Control Side View SMD 4020 RGB LED is a highly sought-after LED diode known for its exceptional performance. It features a compact side view SMD 4020 package and is equipped with a built-in SK6812 IC, which allows for precise control and dynamic lighting effects.
Features:
- Easy installation
- Pure gold wire bonding
- Efficient heat dissipation
- Maintenance free, easy installation
- Energy-saving and environmentally friendly
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red
Green
Blue
|
625
525
466 |
--- |
635
535
472 |
nm |
IF=12mA |
| Luminous intensity |
Iv |
Red
Green
Blue
|
|
200
2000
500
|
|
mcd |
IF=12mA |
| Forward voltage |
VF |
Red
Green
Blue
|
3.5 |
--- |
5.5 |
V |
IF=12mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=12mA |
| Reverse current |
IR |
|
--- |
---- |
5 |
uA |
IF=12mA |
| Operation Temperature |
－40~+85℃ |
Size |
4.0*2.0*1.5mm |
| Storage Temperature |
－40~+100℃ |
Packing |
4000pcs/reel |
Applications:
- Automobile luminous sign, magic LED handbag
- Mobile phone, digital camera, flash photoelectric display
- Decorative lighting, including backlighting in dashboards and switches
- LED flexible full-color pixel screen, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED flexible full-color pixel screen, LED color clothing,LED dynamic advertisement
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: How can I request a quotation from you?
A1: Please leave us a message with details about the products and quantities you need. Our professional team will respond to you promptly.
Q2. What about the lead time?
A2:Sample needs 1-3 working days, mass production needs 7-15 working days if order quantity more than 10K.
Q3: Do you provide OEM and ODM services?
A3: Yes, we offer both OEM and ODM services. We can customize products according to your specific requirements.
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.
Q5. How to proceed an order for the led?
A: for some products, you can buy on our web directly; otherwise, please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
