Surface Mount Multi Color SMD LED 0805 RGB flashing Light 0807 For Cars lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 0807 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-473 Nm | Forward Current: | 12mA |
| Forward Voltage: | 3.4-5.4v | Size: | 2.0*1.7*0.8mm |
| Warranty: | 2 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 5000pcs/reel | Lifetime: | 50，000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 0805 RGB LED flashing Light,0805 led color change light,0807 multi color led indicator lamp |
||
Product Description
hot sale High Quality 0805 0807 Tri-color RGB LED flashing Led Light Chip Diode Led for cars
0805 0807 Tri-color RGB LED flashing Led---Lanjin catalog.pdf

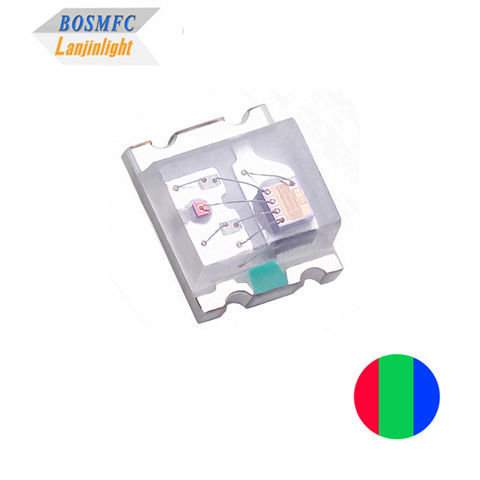

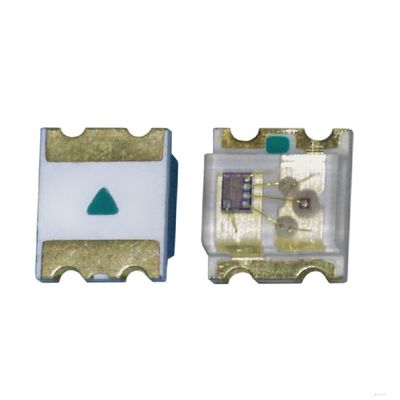

The 0807 RGB SMD LED is a compact surface-mount LED that allows for fast and slow flashing effects. With its 0805 size, it is small and versatile, making it suitable for various applications. The LED chip provides full-color changing capabilities, emitting vibrant and dynamic light.
Features:
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Meet RoHS Green Product
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
200
500 180 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
3.4 | --- | 5.4 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 2.0*1.7*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Applications:
- Office automation, home appliances, industrial equipment
- Mobile phone, digital camera, flash photoelectric display
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, LED backlight and SMD type indicators
- LED modules and LED strip lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, well come to your visting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A2: Yes. We could offer free samples 1-50 pcs.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you provide customization and OEM service?
A4: Yes, we offer customization and OEM service, please tell us your requirements clearly.
Q5: Do you offer guarantee for the products?
A5: Yes,We offer 1-3 years warranty to your product.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
