2835 Tri-color led diode Best price Built in IC Fast slow flash tri-color SMD 2835 RGB flashing LED for lights
SMD 2835 RGB LED with IC---Lanjin catalog.pdf

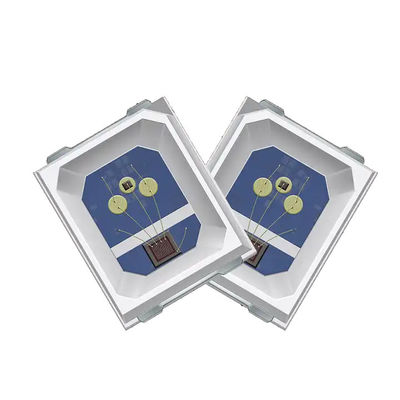

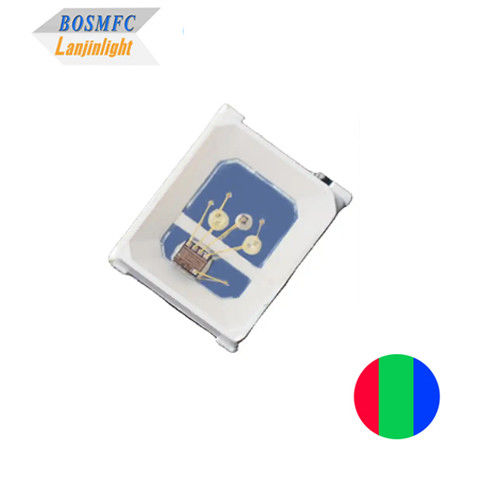

The SK6812 Chip WS2812B IC Built-in 2835 RGB SMD LED is a versatile and high-performance LED diode that offers full-color light changing capabilities. It features a built-in WS2812B IC chip, which allows for individual control of each LED pixel, enabling stunning dynamic lighting effects.
Features:
- Energy-saving and environmentally friendly
- Long lifespan
- Efficient heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red
Green
Blue
|
625
525
466 |
--- |
635
535
472 |
nm |
IF=12mA |
| Luminous intensity |
Iv |
Red
Green
Blue
|
|
500
2000
500
|
|
mcd |
IF=12mA |
| Forward voltage |
VF |
Red
Green
Blue
|
3.5 |
--- |
5.5 |
V |
IF=12mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=12mA |
| Reverse current |
IR |
|
--- |
---- |
5 |
uA |
IF=12mA |
| Operation Temperature |
－40~+85℃ |
Size |
3.5*2.8*0.8mm |
| Storage Temperature |
－40~+100℃ |
Packing |
4000pcs/reel |
Applications:
- Office automation, home appliances, industrial equipment
- Mobile phone, digital camera, flash photoelectric display
- Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
- Entertainment and stage lighting
- Interior ambient lighting, accent lighting, and decorative lighting
- LED module and LED strip light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can I get some free samples for confirmation?
A: Yes, we welcome samples to check our LED quality and performance.
Q2: What about the lead time?
A: Sample needs about 3-5 working days. Customized products need 5-7 working days. Mass production 15-25 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: How do you ship the goods and how long it will take?
A: Generally we ship the goods to you door to door by DHL, UPS, FEDEX, TNT express.
It will take 2-4 working days. And Air transportation and Sea shipping is also available.
Q5: How do you deal with the LED Failure issue?
A: Our engineer will analyze the failure and find out the failure cause according to the failed
products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others
