700mA 3535 SMD LED Full Spectrum , 365nm 650nm 850nm LED Chip Types
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3535 SMD LED full spectrum |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Plant Grow Lights | Power: | 3 W |
|---|---|---|---|
| Emitting Color: | Full Colors | Forward Current: | 700mA |
| Viewing Angle: | 120° | Size: | 3.5*3.5*2.3mm |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 2000pcs/reel |
| Highlight: | 700mA SMD LED Full Spectrum,3535 SMD LED Full Spectrum,850nm LED Chip Types |
||
Product Description

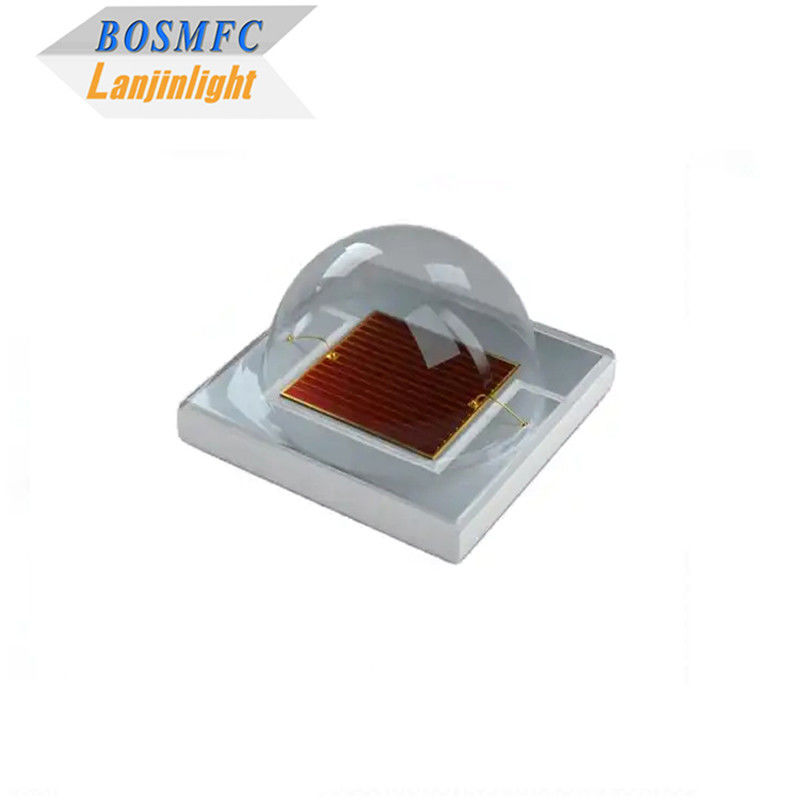

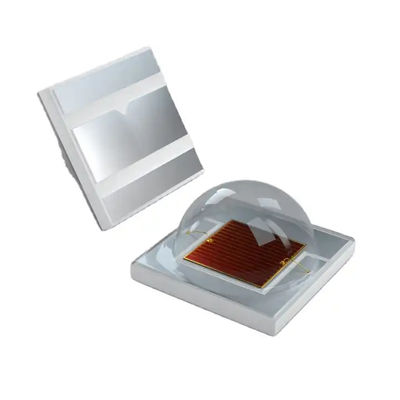

Full spectrum high power LED 3535 smd led 365nm 650nm 850nm for plant grow light
The Full Spectrum High Power LED 3535 SMD LED is a versatile lighting component specifically designed for plant grow lights. This LED emits light across a wide spectrum, including wavelengths of 365nm, 650nm, and 850nm.
With a compact size and surface-mount design, it is easy to integrate into various grow light systems. The 365nm wavelength provides ultraviolet (UV) light, which is beneficial for promoting plant growth and development. The 650nm wavelength corresponds to red light, which is crucial for stimulating photosynthesis and flowering. Lastly, the 850nm wavelength falls within the near-infrared (NIR) range and plays a role in enhancing plant metabolism and promoting overall health.
The high power output of this LED ensures sufficient light intensity for plant cultivation and ensures optimal growth conditions. It is commonly used in indoor gardening, hydroponic systems, and other applications where artificial lighting is necessary to support plant growth. The Full Spectrum High Power LED 3535 SMD LED is an essential component for creating an effective and efficient plant grow light system.
Features:
- Energy saving and environmental protection
- 50,000 hours long life span
- Good heat dissipation
- Low light attenuation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Full spectrum | 380 | --- | 850 | nm | IF=700mA |
| Optional color | CCT | White | 2700 | 20,000 | K | IF=700mA | |
| Luminous intensity | Iv | Full spectrum | 60 | --- | 280 | LM | IF=700mA |
| Forward voltage | VF | Full spectrum | 2 | --- | 3 | V | IF=700mA |
| Viewing angle | --- | 120 | --- | deg | IF=700mA | ||
| Reverse current | IR | Full spectrum | --- | ---- | 5 | uA | IF=700mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*3.5*2.3mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- Farming in indoor horticulture and plant cultivation systems.
- Supplemental lighting and cultivation in environments with limited natural daylight.
- Photoperiodic lighting and photo-morphological control .
- Urban farming and controlled environment farming.
- Algae grow lights and agricultural lighting.
- Agricultural lighting for various crops, including fruits, vegetables, and herbs, to enhance growth and yield.
- Fish and poultry lighting in aquaculture and poultry farming.
Full spectrum wavelength effects:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Why choose us?
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer of SMD LED, through-hole LED and digital LED display, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I have a sample order for led light?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does delivery take?
A3: We usually ship via DHL, UPS, FedEx, or TNT for faster delivery, which takes approximately 3-5 days to arrive. Airline and sea shipping options are also available.
A4: For standard item, delivery date is 3~5 working days from inventory.
And 7~15 days upon receipt of payment in case there is no inventory.
15~25 days upon receipt of payment in case there is no chip inventory.
A5: Payment methods acceptable: T/T, Western Union, PayPal.
Others need to be negotiated.
YES, sample order is acceptable.
Please contact our sales and specify detailed requests, we will try to arrange samples at earliest time.
Free Sample support can be applied upon detailed request.
