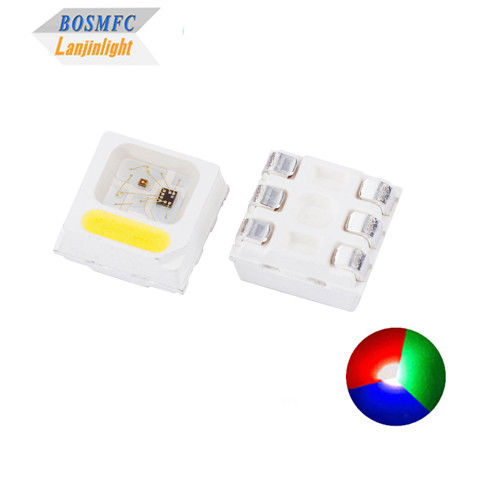

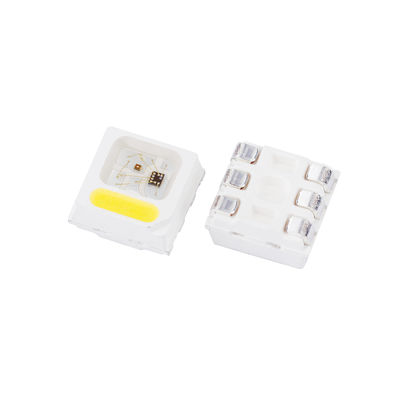

High Brightness 3535 RGBW Multi Color SMD LED SK6812 WS2812B IC Built In Addressable Digital RGBWW LED Chip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3535 RGBW SMD LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Flashing Light RGBW |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-472 Nm & White Color | Forward Current: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 3.7*3.5*1.9mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 2000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 3535 RGB Multi Color SMD LED,IC Built In Addressable RGB LED Chip,3535 super bright rgb led |
||
Product Description
High Brightness Multi Color 3535 RGBW SMD LED SK6812 WS2812B IC built-in addressable Digital RGBWW LED Chip
The PLCC6 5050 RGBW LED with built-in IC KS6812 LED chip is specifically designed for magic lights used in decoration. This LED chip integrates the RGBW (red, green, blue, and white) color channels into a compact 5050 package with a PLCC6 form factor. The IC KS6812 is embedded within the LED chip, providing control and synchronization capabilities for the individual color channels.
Features:
- Pure gold wires bonding
- Long life span 50,000 hours
- Pb free and radiationless
- Low-temp & lead free reflow soldering
- Efficient heat dissipation
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
625
525 466 CCT2800K |
--- | 635
535 472 CCT6500K |
nm | IF=8mA |
| Luminous intensity | Iv | Red
Green Blue White |
1.0
3.0 0.8 6.0 |
LM | IF=8mA | ||
| Forward voltage | VF |
|
3.5 | --- | 5.5 | V | IF=8mA |
| Viewing angle | --- | 120 | --- | deg | IF=8mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=8mA |
| Operation Temperature | －40~+85℃ | Size | 3.7*3.5*1.9mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- LED dream color strip, portable fantasy audio, computer chassis, fan decoration light
- Mobile phone, digital camera, flash photoelectric display
- Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
- LED color model, keyboard, smart bracelet, angel eyes, full color LED display
- Interior ambient lighting, accent lighting, and decorative lighting
- Dream color shoes and all other color LED lighting application.
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. Could you please send me the free sample, so that I could see and check its quality?
A1: Yes. We could offer free samples 1-50 pcs.
Q2. What about the lead time?
A:5-7 days for samples, 2-3 weeks for mass order.
Q3. What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
