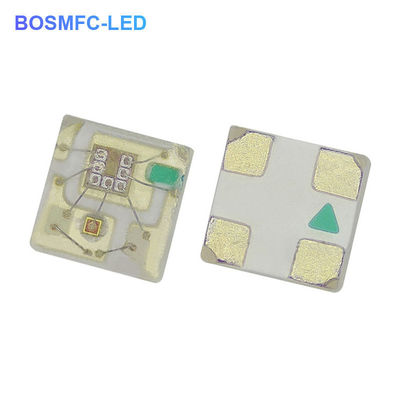

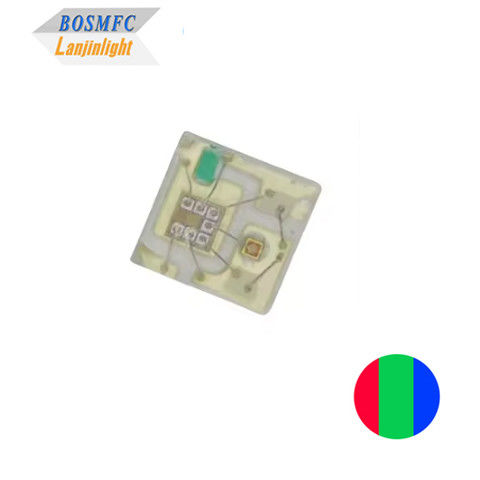

Built In IC 10*10 Led Clip 1010 RGB LED Mini Smd Led Component SK6805 SK9818
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 1010 RGB mini LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 24000pcs |
|---|---|
| Packaging Details: | 8000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light With IC | Wavelength: | 620-630 / 515-530 / 460-470 Nm |
| Luminous Intensity: | 130/ 300/ 110mcd | Forward Current: | 20mA |
| Forward Voltage: | 3.5-5.5v | Size: | 1.0*1.0*0.8mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 8000pcs/reel | Lifetime: | 60000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 1010 RGB SMD LED,Smd Led Component,1010 car led light |
||
Product Description
Built-in IC 10*10 led clip 1010 mini smd led rgb led component full color smd led diode
1010 RGB LED with IC---Lanjin catalog.pdf
Features:
- Pure gold wire bonding
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 630
530 470 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
120
280 100 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
3.5 | 5.5 | V | IF=20mA | |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 1.0*1.0*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 8000pcs/reel |
Applications:
The 1010 RGB LED Diode is suitable for both indoor and outdoor lighting applications. Some common applications include:
- Automobile luminous sign, magic LED handbag
- Mobile phone, digital camera, flash photoelectric display
- Decorative lighting, including backlighting in dashboards and switches
- LED flexible full-color pixel screen, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED flexible full-color pixel screen, LED color clothing,LED dynamic advertisement
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, well come to your visting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A2: Yes. We could offer free samples 1-50 pcs.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you provide customization and OEM service?
A4: Yes, we offer customization and OEM service, please tell us your requirements clearly.
Q5. How to proceed an order for the led?
A: for some products, you can buy on our web directly; otherwise, please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
