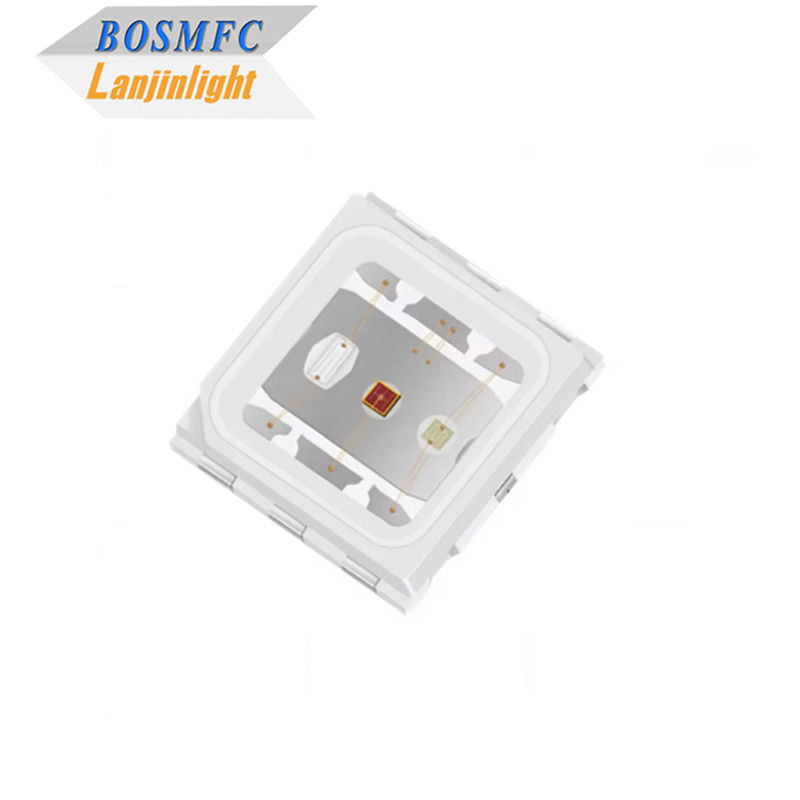

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 Tri-color SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 150mW |
|---|---|---|---|
| Color: | R+IR+UV | Wavelength: | 660+850+415nm |
| Optical Power: | 9.5lm/119mW/168mW | Forward Current: | 150*3mA |
| Forward Voltage: | 1.8-2.4/2.8-3.2 /2.8-3.2v | Size: | 5.3*5.0*1.1mm |
| Warranty: | 2 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 5050 SMD LED Chip,1.5W SMD LED Chip |
||
Product Description

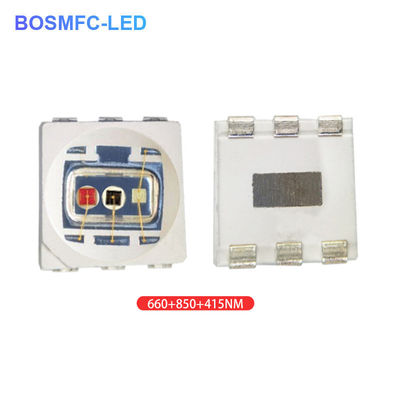

1.5W 5050 SMD 660+850+415nm For LED medical cosmetology alleviate pain
5050 SMD LED---Lanjin catalog.pdf
Features:
- Well-known chip brands material
- 99.99% pure gold wire bonding
- High flux per LED
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Low Voltage DC operated
- Long lifespan 50,000 hours
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
IR Blue/UV |
660 850 415 |
nm | IF=150*3mA | ||
| Optical power | Iv | Red
IR Blue/UV |
9.5
119 168 |
lm mW mW |
IF=150*3mA | ||
| Forward voltage | VF | Red
IR Blue/UV |
1.8
2.8 2.8 |
--- | 2.4
3.2 3.2 |
V | IF=150*3mA |
| Viewing angle | --- | 120 | --- | deg | IF=150*3mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=150*3mA |
| Operation Temperature | －40~+85℃ | Size | 5.3*5.0*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
*Medical beauty lamp,
* Medical lamp,
* Beauty lamp,
* Freckle lamp
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q: Are you mamanufacturer?
A: Yes we are 18 years LED manufacturer in China.
Q: Do you provide samples?
A: Yes we can provide free samples according to customers requirements.
Q: What certificates does this product have?
A: We have CE, Reach, ROHS certified.
Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MoQ is open for discussion.
Q: What is depvery terms and time?
A: We use EXW , FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
Q5: How do you deal with the LED Failure issue?
A: Our engineer will analyze the failure and find out the failure cause according to the failed
products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others.
