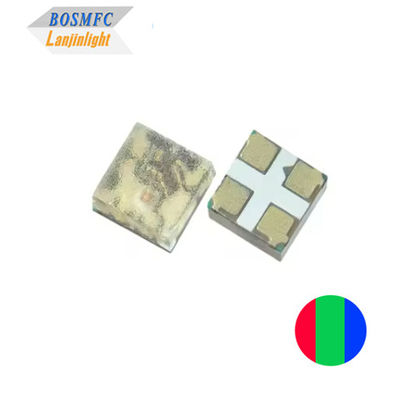

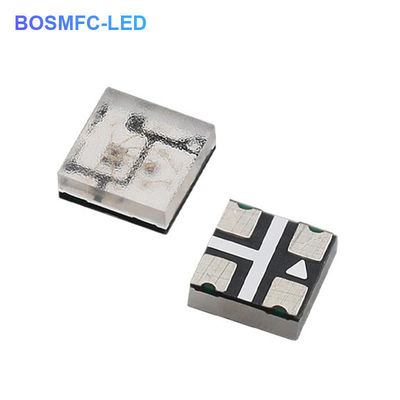

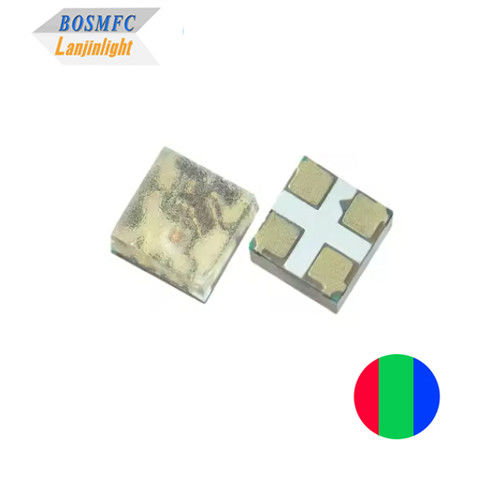

WS2812B Built - In IC 1515 RGB Led Chip Beads 5V Mini LED Full Color Led For LED displays
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2020 RGB LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor / Outdoor Lighting | Color: | RGB Full Colors Changing Light |
|---|---|---|---|
| Wavelength: | 620-635 / 520-535 / 460-475 Nm | Forward Current: | 12mA |
| Forward Voltage: | 3.5-5.5v | Size: | 1.5*1.5*0.65mm |
| Warranty: | 1-3Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 5000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 1515 RGB Light Beads,Full Color LED display,1515 super bright smd led 5v rgb |
||
Product Description
WS2812B Built - In IC 1515 RGB Led Chip Beads 5V Mini LED full Color Led For LED displays
2020 2121 RGB LED with IC---Lanjin catalog.pdf
IC SK2812 Control Side View SMD 151 RGB LED is a highly sought-after LED diode known for its exceptional performance. It features a compact side view SMD 2020 package and is equipped with a built-in SK6812 IC, which allows for precise control and dynamic lighting effects.
Features:
- Low energy consumption
- Long life-solid quality reliability
- Available on tape and reel
- RoHS compliant
- Suitable for all SMT assembly methods
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
260
780 450 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
3.5 | --- | 5.5 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 1.5*1.5*0.65mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Feature description:
1. ECLED integrates high-quality external control single line serial cascaded constant current IC internally;
2. Equipped with a built-in data shaping circuit, any pixel receives a signal and undergoes waveform shaping before outputting, ensuring that the waveform distortion of the circuit does not accumulate.
3. Built in power on reset and power off reset circuits, with no light on when powered on;
4. Grayscale adjustment circuit (256 levels of grayscale adjustable),
5. Special treatment with red light drive for more balanced color matching,
6. Single line data transmission, can be infinitely cascaded.
7. Shaping forwarding reinforcement technology, with a transmission distance between two points exceeding 10 meters
8. The data transmission frequency can reach 800Kbps, and when the refresh rate is 30 frames per second, the number of cascades is not less than 1024 points.
Applications:
- Architectural lighting in buildings, bridges, and other architectural structures.
- Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
- Automotive lamps and electronics, including traffic lights
- CONSUMER ELECTRONICS
- Decorative lighting, including backlighting in dashboards and switches
- SMART HOME APPLIANCES
Materials:
