RDC12V PLCC6 5050 RGB LED IC driving Multi Color SMD LED SK6812 / WS2812B IC
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 RGB LED with IC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-635 / 520-535 / 460-475 Nm | Forward Current: | 12mA |
| Forward Voltage: | 11-13v | Size: | 5.4*5.0*1.6mm |
| Warranty: | 2-3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 50,000-60,000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 5050 RGB LED with IC,5050 RGB led stage light,high quality 5050 rgb led |
||
Product Description

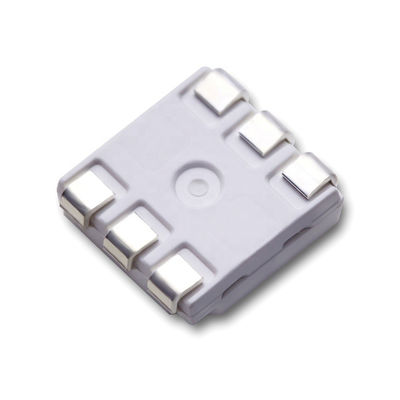

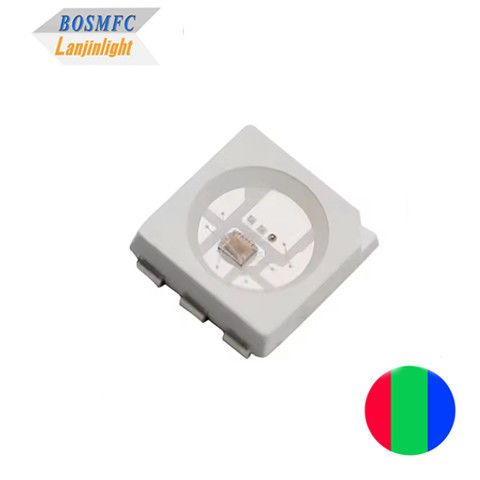

SK6812 Chip WS2812B IC Built In 5050 RGB SMD LED full colors light changing led diode
The Built-in IC 12V SMD 5050 RGB LED is a high-quality LED diode manufactured by a reputable LED manufacturer in China with 18 years of experience. It features a compact SMD 5050 package and incorporates the SK6812 and WS2811 ICs, allowing for full-color illumination and versatile control options.
Features:
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 460 |
--- | 635
535 475 |
nm | IF=12mA |
| Luminous intensity | Iv | Red
Green Blue |
500
2000 500 |
mcd | IF=12mA | ||
| Forward voltage | VF | Red
Green Blue |
11 | --- | 13 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.6mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Automobile luminous sign, magic LED handbag, LED smart women jewelry, dream color shoes
- Mobile phone, digital camera, flash photoelectric display
- Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
- LED flexible full-color pixel screen, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED color model, keyboard, smart bracelet, angel eyes, full color LED display
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Why choose us?
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer of SMD LED, through-hole LED and digital LED display, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, we provide wholesale pricing for bulk orders and customized products.
Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher values, the better performance. Additionaly, brand of LED chip, LED frame and other materials will influence the product reliability.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
