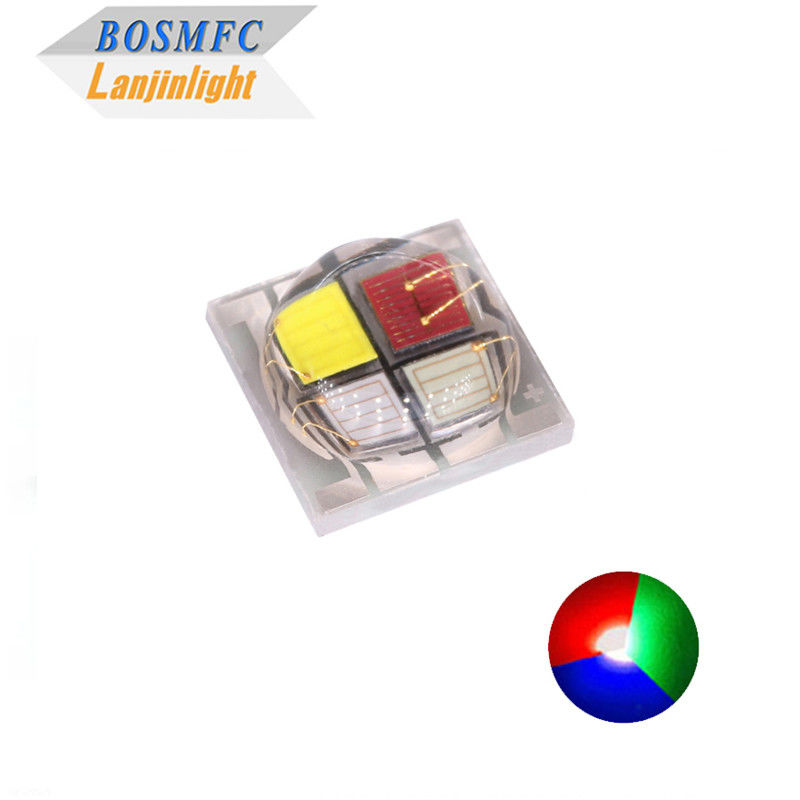

High Power 5050 RGBW SMD LED With Ceramic Base 4*1W & 4*3W Configuration 6000K White Light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 12w 5050 RGBW SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 500pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| ApplicIndoor & Outdoor Lightingation: | Medical Equipment And Lighting Indication | Color: | RGB Light |
|---|---|---|---|
| Wavelength: | 620-635 / 515-525 / 460-473 Nm/CCT6000-8500K | Luminous Intensity: | 180/ 90/ 50 /260 LM |
| Forward Current: | 700mA | Forward Voltage: | 1.8-2.4v/2.8-3.4v /2.8-3.4v/2.8-3.4v |
| Size: | 5.15*5.15*2.78mm | Warranty: | Usually 3 Years |
| Lifetime: | 50000 H | Operating Temperature: | -40℃~+85℃ |
| Reverse Voltage: | 5 V | Storage Temperature: | -40℃~+100℃ |
| Highlight: | 5050 high power led flashlights,5050 RGBW SMD LED,led high power lights |
||
Product Description

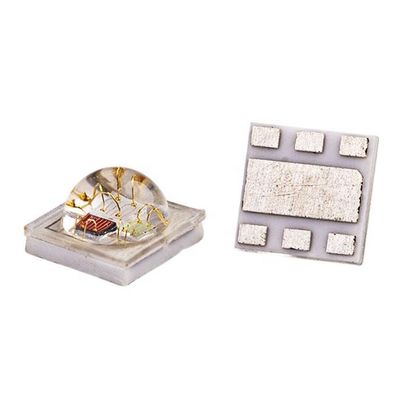

High Power 5050 RGBW SMD LED with Ceramic Base, 4*1W & 4*3W Configuration, 6000K White Light
Features:
- Well-known chip brands material
- 99.99% pure gold wire bonding
- High flux per LED
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Low Voltage DC operated
- Long lifespan 50,000 hours
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
620
515 460 CCT6000K |
--- | 635
525 470 CCT8500K |
nm | IF=700mA |
| Luminous intensity | Iv | Red
Green Blue White |
180
90 50 260 |
LM | IF=700mA | ||
| Forward voltage | VF | Red
Green Blue White |
1.8
2.8 2.8 2.8 |
--- | 2.4
3.4 3.4 3.4 |
V | IF=700mA |
| Viewing angle | --- | 120 | --- | deg | IF=700mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=700mA |
| Operation Temperature | －40~+85℃ | Size | 5.15*5.15*2.78mm |
| Storage Temperature | －40~+100℃ | Packing | 500pcs/reel |
Applications:
- Stage light
- Spot light
- Shot light
- Foutain light
- Landscape light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can I get some free samples for confirmation?
A: Yes, we encourage customers to request samples to evaluate the quality and performance of our LEDs. We can provide free samples based on your specific requirements.
Q2: What about the lead time?
A: Sample needs about 3 working days. Customized products need 5-7 working days. Mass production 10-15 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: How do you ship the goods and how long it will take?
A: We typically arrange door-to-door delivery via DHL, UPS, FedEx, or TNT express, with an estimated delivery time of 2-4 working days. Additionally, air and sea freight options are available upon request.
Q5: How do you deal with the LED Failure issue?
A: Our engineering team will analyze the failure by examining the provided pictures of the defective products or the rejected samples from our clients to identify the root cause. If it is determined that the failure was due to a defect caused by Lanjin, we will promptly provide a replacement batch of LED products and ship them to you as quickly as possible.
Our LED products are manufactured under a strict quality control system, and each batch undergoes a thorough inspection before shipment. This ensures that our defect rate remains significantly lower than the industry average.
