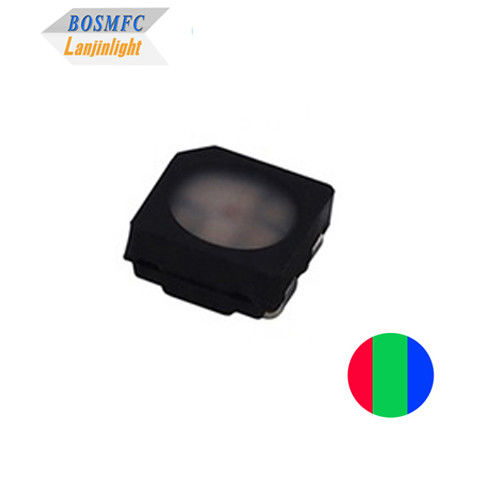

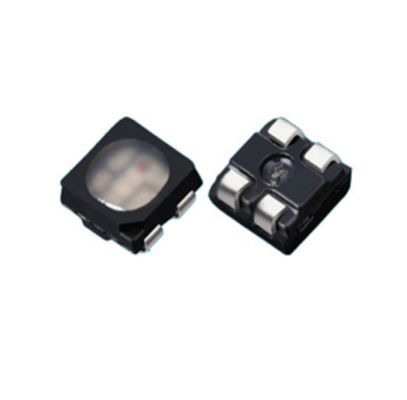

2121 RGB LED Chip for P5 P6 Indoor Outdoor Display Panel with 2020 SMD Multi Color LED
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2020 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm |
| Luminous Intensity: | 180/ 600/ 120mcd | Forward Current: | 10mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 2.1*2.1*0.95mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 5000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 2020 RGB LED Chip,smd 2020 rgb led,2121 rgb led strip |
||
Product Description
Cheapest 2121 RGB LED SMD 2020 RGB LED Full Color Led Chip For 2121 P5 P6 Indoor Outdoor Display Panel Wholesale
Features:
- Pure gold wire bonding
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 635
525 470 |
nm | IF=10mA |
| Luminous intensity | Iv | Red
Green Blue |
180
600 120 |
mcd | IF=10mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=10mA |
| Viewing angle | --- | 120 | --- | deg | IF=10mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=10mA |
| Operation Temperature | －40~+85℃ | Size | 2.1*2.1*0.95mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Applications:
The 2020 RGB LED Diode is suitable for both indoor and outdoor lighting applications. Some common applications include:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Front panel backlighting
- Full-color strip lighting
- Status indicators
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or trade company?
A: We have our own factory in Donguan, if you have time come China, welcome your visisting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A: Yes. We can send you free samples first, if the value is low. But our clients should pay for the shipping freight themselves. Samples fee needs to be charged if the value is high.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
