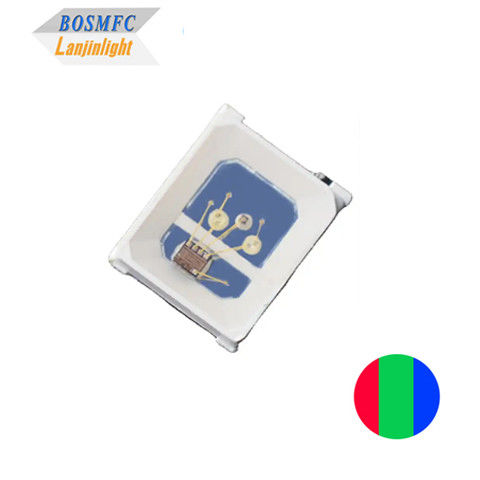

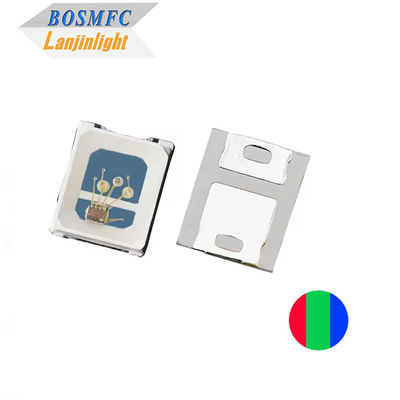

Fast Flashing Built In IC 2835 RGB SMD LED Slow Flashing Light Full Color For Cars Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 RGB SMD LED flashing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Color: | Full Colors Changing Light RGB |
|---|---|---|---|
| Wavelength: | 620-635 / 525-535 / 466-473 Nm | Forward Current: | 20mA |
| Forward Voltage: | 2.0-4.0v | Size: | 3.5*2.8*0.7mm |
| Warranty: | 2 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50，000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
| Highlight: | 2835 multi color led flash light,2835 LED RGB Car Lamp,rgb multi color led headlight |
||
Product Description
Fast flashing Built-in IC 2835 RGB SMD LED slow flashing Light full color LED For Cars lamp
Features:
- Color : full color
- Lens: Transparent
- EIA STD Package
- Meet ROHS, Green Product
- Compatible With SMT Automatic Equipment
- Compatible With Infrared Reflow Solder And Wave Solder Process
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
625
525 466 |
--- | 635
535 472 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
150
300 120 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
2.0 | --- | 4.0 | V | IF=12mA |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*0.7mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Office automation, home appliances, industrial equipment
- Mobile phone, digital camera, flash photoelectric display
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, LED backlight and SMD type indicators
- LED modules and LED strip lights
Materials:
