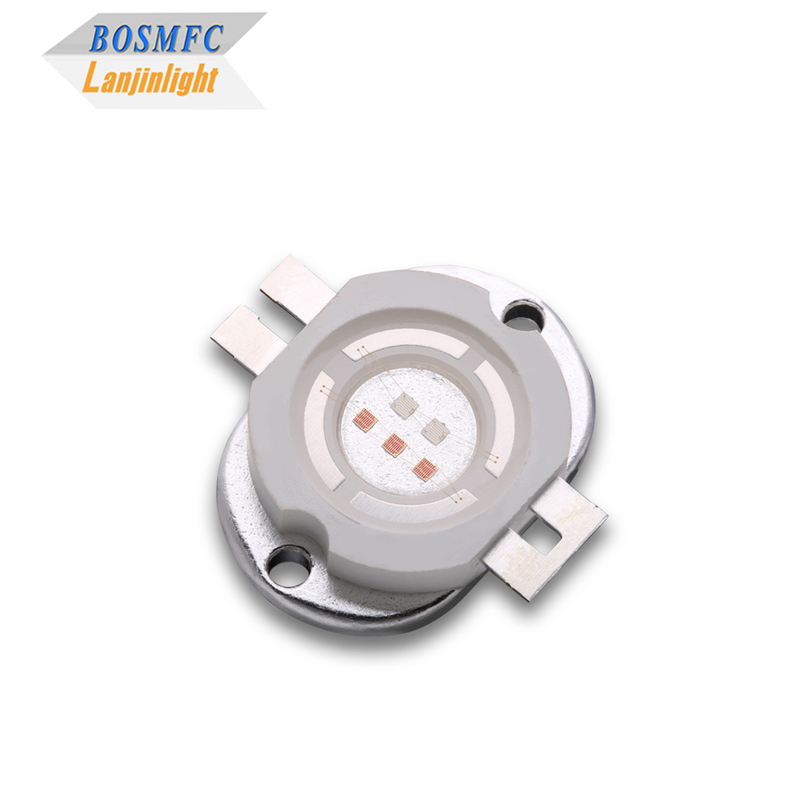

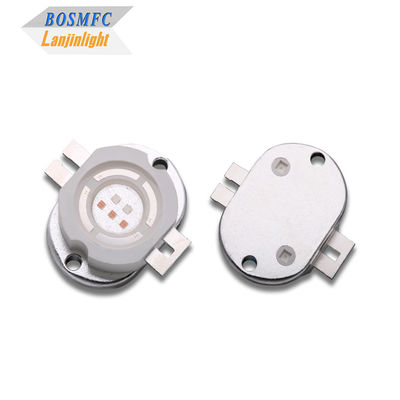

High-power LED Red+Blue Dual Color 5W Integrated LED Light Source for Spectral Therapy
This high-power 5W integrated LED light source combines red and blue wavelengths in a single robust package. Designed for professional spectral therapy devices, it delivers targeted phototherapy - the blue light effectively targets acne-causing bacteria while the red light stimulates collagen production and reduces inflammation. Its integrated design ensures consistent performance and thermal stability, making it an ideal core component for clinical-grade skincare and pain relief equipment requiring reliable, high-intensity light treatment.
Key Features
- 99.99% gold wire bonding for superior conductivity
- Long lifespan of 50,000 hours
- Excellent heat dissipation capabilities
- Instant light activation (less than 100ns)
- RoHS and REACH certified for environmental compliance
Technical Parameters (Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
|---|
| Luminous intensity | Iv | 625nm / 460nm | - | 915 / 1315 | - | LM | IF=350mA |
| Dominant wavelength | - | 625nm / 460nm | 620 / 457 | - | 625 / 462 | nm | IF=350mA |
| Forward voltage | VF | 625nm / 460nm | 6 / 6 | - | 7 / 7 | V | IF=350mA |
| Viewing angle | - | - | - | 120 | - | deg | IF=350mA |
| Reverse current | IR | - | - | - | 5 | uA | IF=350mA |
Operation Temperature: -40~+85℃
Size: 23×15.5×6mm
Storage Temperature: -40~+100℃
Packing: 100pcs/reel
Applications
- Acne Treatment - Blue light combats bacteria effectively
- Anti-Aging Care - Red light boosts collagen production
- Skin Rejuvenation - Improves skin tone and texture
- Pain Management - Soothes muscles and joints
- Wound Healing - Accelerates tissue repair process
Materials & Construction
- High Quality Chips for optimal performance
- 99.9% Pure Gold Wire for superior conductivity
- Pure Copper Electroplated Stent for excellent heat dissipation
- Environmental Glue for durability and safety
Company Information
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
Packing and Shipping
Inner packaging: Anti-static Bag Vacuum Packaging
Outer packaging: Standard export carton packing
Frequently Asked Questions
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer with 18 years of experience in China, providing one-stop OEM & ODM service to partners worldwide.
Q2: Can I get some samples for tests?
A2: Yes, we welcome samples to check our LED quality and performance. Free samples are available according to your requirements.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For standard samples, delivery could be within 3 days.
Q4: What payment terms are available?
A4: We accept T/T, PayPal, and Western Union.
Q5: How to proceed with an order for LED lights?
1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and places deposit for formal order.
4. We arrange the production.
