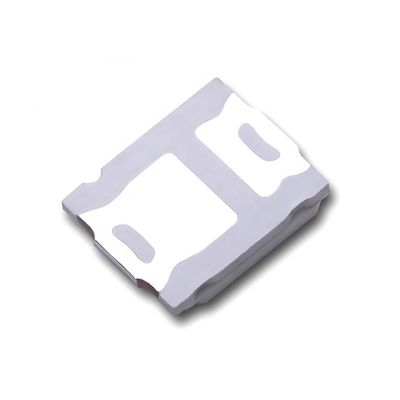

Super Bright 0.2w Top view 2835 SMD LED For Advertising Billboard Signs
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.2 W |
|---|---|---|---|
| Emitting Color: | Red | Wavelength: | 620-630nm |
| Forward Current: | 60mA | Forward Voltage: | 1.8-2.4v |
| Luminous Flux: | 5-10lm | Viewing Angle: | 120° |
| Size: | 2.8*3.5*0.8mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 2 Years |
| Chip Brand: | San'an Chip | Package: | 4000pcs/reel |
| Highlight: | 2835 Top view SMD LED,2835 smd led light module,2835 smd led datasheet |
||
Product Description

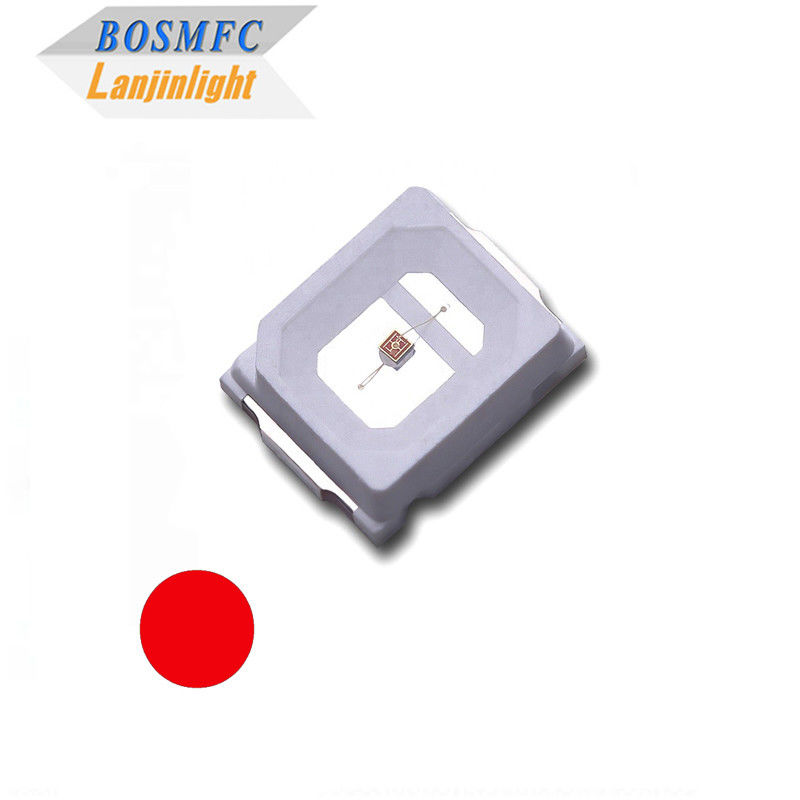

0.2w 2835 SMD LED super bright Red light LED chip for Letter Sign Advertising Billboard signs
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red | 620 | --- | 630 | nm | IF=60mA |
| Luminous intensity | Iv | Red | 5 | --- | 10 | LM | IF=60mA |
| Forward voltage | VF | Red | 1.8 | --- | 2.4 | V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | Red | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Why choose us?
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer of SMD LED, through-hole LED and digital LED display, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, we provide wholesale pricing for bulk orders and customized products.
Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher values, the better performance. Additionaly, brand of LED chip, LED frame and other materials will influence the product reliability.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
