Heat Dissipation 2835 SMD Chip blue light Multipurpose For Outdoor LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|

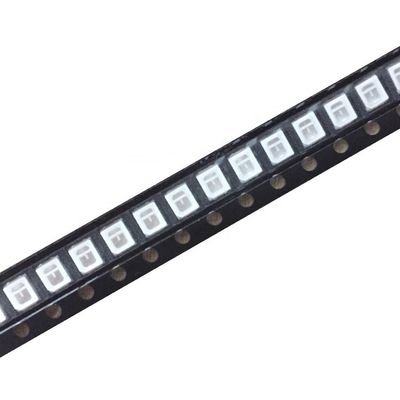

| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 80mW |
|---|---|---|---|
| Color: | Blue Light | Wavelength: | 460-472nm |
| Luminous Intensity: | 6-16lm | Forward Current: | 60mA |
| Forward Voltage: | 2.8-3.4v | Size: | 2.8*3.5*0.8mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 2835 strip light,2835 led strip light,samsung 2835 smd led |
||
Product Description

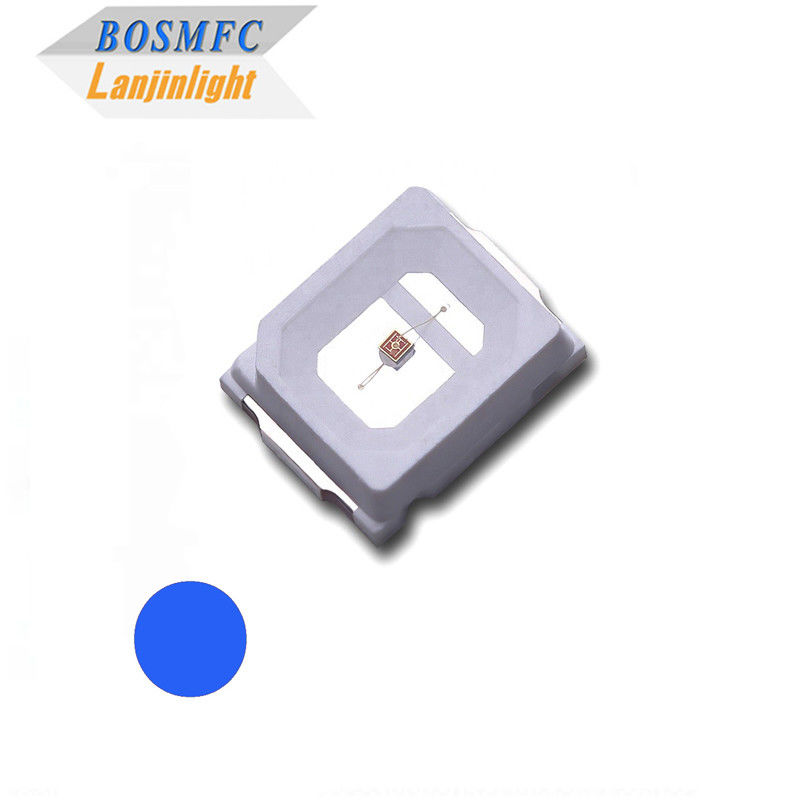

2835 SMD LED factory price Blue light LED chip for outdoor LED strip
2835 SMD LED---Lanjin catalog.pdf
The 2835 SMD LED chip is a blue light LED chip designed for outdoor LED strips. It is available at a factory price and offers various features and specifications for optimal performance.
Features:
- Energy-saving and environmentally friendly
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS & Reach certificate
Technical Parameters:
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Blue | 460 | --- | 473 | nm | IF=60mA |
| Luminous intensity | Iv | Blue | 6 | --- | 16 | LM | IF=60mA |
| Forward voltage | VF | Blue | 2.8 | --- | 3.4 | V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | Blue | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor lighting
- LED backlight and SMD type indicator
- LED module and LED strip lights
- Decoration light, backlight in dashboards and switches
- Automotive lamps and electronics
- Traffic lights
- Mobile phones, digital cameras, and flash photoelectric displays
- LED taillights, brake lights, turn lights, daytime running lights, license plate lamps, in-vehicle lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a professional LED manufacturer specializing in the production of SMD LEDs, through-hole LEDs, and digital LED displays. We offer comprehensive OEM and ODM services to partners worldwide.
Q2: Can I request samples for testing?
A2: Yes, we encourage sample orders for testing and evaluating the quality of our LEDs.
Q3: Do you offer discounts for bulk orders?
A3: Yes, we provide wholesale pricing for bulk orders and customized products.
Q4: How should I select an LED light source?
A4: When choosing an LED light source, consider factors such as lumens (LM), light efficiency (LM/W), and lifespan (hours). Higher values indicate better performance. Additionally, the brand of the LED chip, LED frame, and other materials can influence product reliability.
Q5: How can I place an order?
A5:
1. Share your requirements or application details with us.
2. Based on your requirements or our suggestions, we will provide a quotation.
3. Once the samples are confirmed, you can place an order, and we will proceed with production.
