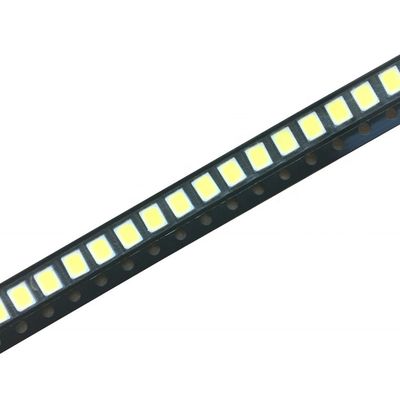

1W 18V 2835 SMD LED 110-140lm LED Lamp Chip 120 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 1 W |
|---|---|---|---|
| Emitting Color: | Warm White, Natural White, Cool White | Color Temperature: | 2700-12,000K |
| Forward Current: | 350mA | Forward Voltage: | 18-18.4v |
| Luminous Flux: | 110-140lm | Viewing Angle: | 120° |
| Size: | 2.8*3.5*0.8mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 2 Years |
| Chip Brand: | San'an Chip | Package: | 4000pcs/reel |
| Highlight: | 2835 SMD LED,2835 LED Chip,2835 LED Light |
||
Product Description

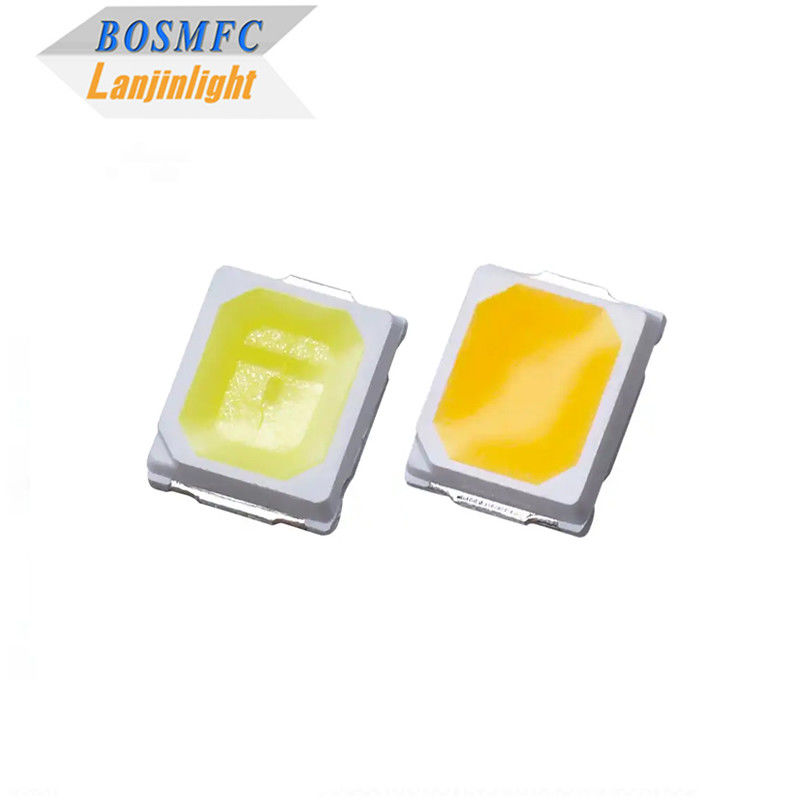

2835 SMD LED 1w 18v high voltage White light LED factory price for LED lamp
2835 SMD LED---Lanjin catalog.pdf
The 2835 SMD LED is a high-quality LED chip diode designed for LED lamp applications. With a power rating of 1W and a high voltage of 18V, provides bright and efficient white light illumination.
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
Color temperature |
CCT |
warm White |
2700 |
--- |
3400 |
K |
IF=350mA |
Natural White |
4000 |
5000 |
|||||
Cold White |
6500 |
20,000 |
|||||
Luminous intensity |
Iv |
White |
110 |
--- |
140 |
LM |
IF=350mA |
Forward voltage |
VF |
White |
18 |
--- |
18.4 |
V |
IF=350mA |
Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=350mA |
Reverse current |
IR |
White |
--- |
---- |
5 |
uA |
IF=350mA |
Operation Temperature |
－40~+85℃ |
Size |
2.8*3.5*0.8mm |
Storage Temperature |
－40~+100℃ |
Packing |
4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards.
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light ,In-vehicle lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years and providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: What about the lead time?
A4: It depends on the order quantity. In general, lead time is about 10-15 working days. For standard samples, the delivery could be 3 days.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
