Durable 2w 3030 SMD LED Chip Green Color For Traffic Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor / Outdoor Lighting | Power: | 2 W |
|---|---|---|---|
| Emitting Color: | Green Color | Wavelength: | 520-530nm |
| Forward Current: | 500mA | Forward Voltage: | 2.8-3.4v |
| Luminous Flux: | 140-180lm | Viewing Angle: | 120° |
| Size: | 3.2*3.0*0.62mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | smd 3030 led,3030 LED Diode,3030 Green LED |
||
Product Description

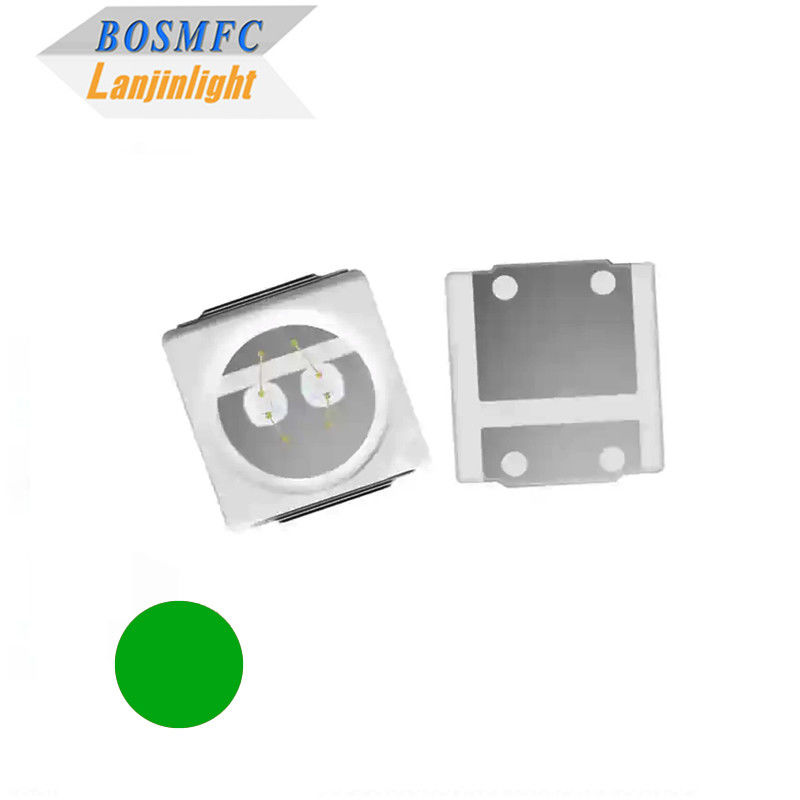

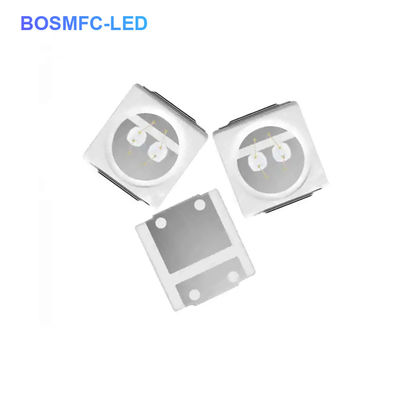

2w 3030 SMD LED Epistar / San'an chip Green light LED for traffic light
3030 SMD LED---Lanjin catalog.pdf
Features:
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Meet RoHS Green Product
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Green | 515 | --- | 525 | nm | IF=350mA |
| Luminous intensity | Iv | Green | 140 | --- | 180 | LM | IF=350mA |
| Forward voltage | VF | Green | 2.8 | --- | 3.4 | V | IF=350mA |
| Viewing angle | --- | 120 | --- | deg | IF=350mA | ||
| Reverse current | IR | Green | --- | ---- | 5 | uA | IF=350mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*3.0*0.62mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can I get some free samples for confirmation?
A: Yes, we welcome samples to check our LED quality and performance.
Q2: What about the lead time?
A: Sample needs about 3-5 working days. Customized products need 5-7 working days. Mass production 15-25 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: Do you supply OEM,ODM service?
A4: YES,absolutely it can be realized as customer's requirements.
Q5: Can I get some samples for tests?
A5: Yes, we welcome sample order to test and evaluate our LED quality.
Q6: How do you deal with the LED Failure issue?
A6: Our engineer will analyze the failure and find out the failure cause according to the failed
products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others
