CRI 95 2W LED Light Chip White Light 3030 SMD LED Diode for TV Backlight
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor / Outdoor Lighting | Power2: | 1 W |
|---|---|---|---|
| Emitting Color: | Warm White, Natural White, Cool White | Color Temperature: | 2800-11,000K |
| Forward Current: | 500mA | Forward Voltage: | 2.8-3.4v |
| Luminous Flux: | 140-160lm | Viewing Angle: | 120° |
| Size: | 3.2*3.0*0.62mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 3030 SMD LED Diode,3030 White Light,3030 chip led smd |
||
Product Description

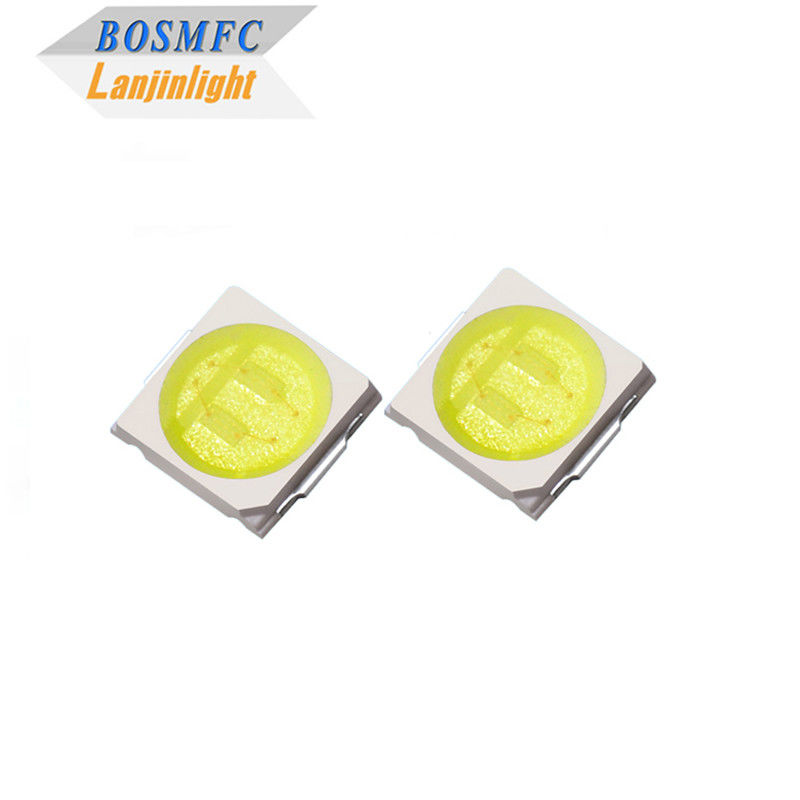

2w 3030 SMD LED white light CRI 95 for TV backlight
Features:
- Long lifespan
- Pure gold wire bonding
- Low-temp & lead free reflow soldering
- Maintenance free, easy installation
- Low Voltage DC operated
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Color temperature | CCT | warm White
Natural White Cold White |
2700
4000 6500 |
--- | 3400
5000 20,000 |
K | IF=500mA |
| Luminous intensity | Iv | White | 140 | --- | 160 | LM | IF=500mA |
| Forward voltage | VF | White | 2.8 | --- | 3.4 | V | IF=500mA |
| Viewing angle | --- | 120 | --- | deg | IF=500mA | ||
| Reverse current | IR | White | --- | ---- | 5 | uA | IF=500mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*3.0*0.62mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!

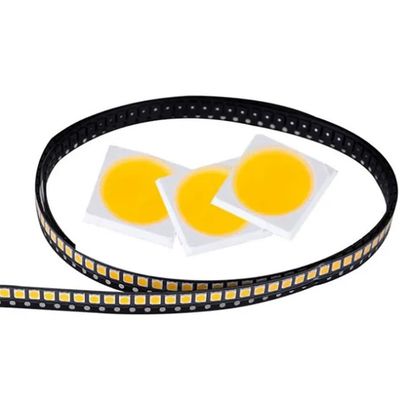

Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. What chip you usually use for your led?
A: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q2. How about your delivery time?
A: Generally, our normal delivery time is 10-25 days, if urgent, we will arrange this prior.
Q3. What payment methods do you accept?
A: We accept T/T, Paypal, L/C, and Western Union.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
2. We will quote based on your requirements or our suggestions.
3. customer confirms the samples and places order, we will arrange production.
Q6: How we can trust your quality?
A6: All materials are accordant with RoHs standard, and 100% tested before delivery.
