20mA 3528 SMD LED Blue Emitting light good Heat Dissipation For LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3528 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06 W |
|---|---|---|---|
| Emitting Color: | Blue | Wavelength: | 460-472nm |
| Forward Current: | 20mA | Forward Voltage: | 2.8-3.4v |
| Luminous Flux: | 1000-2000mcd | Viewing Angle: | 120° |
| Size: | 3.5*2.8*1.9mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 2000pcs/reel |
| Highlight: | 3528 led light,3528 led strip lights,3528 led chip light |
||
Product Description

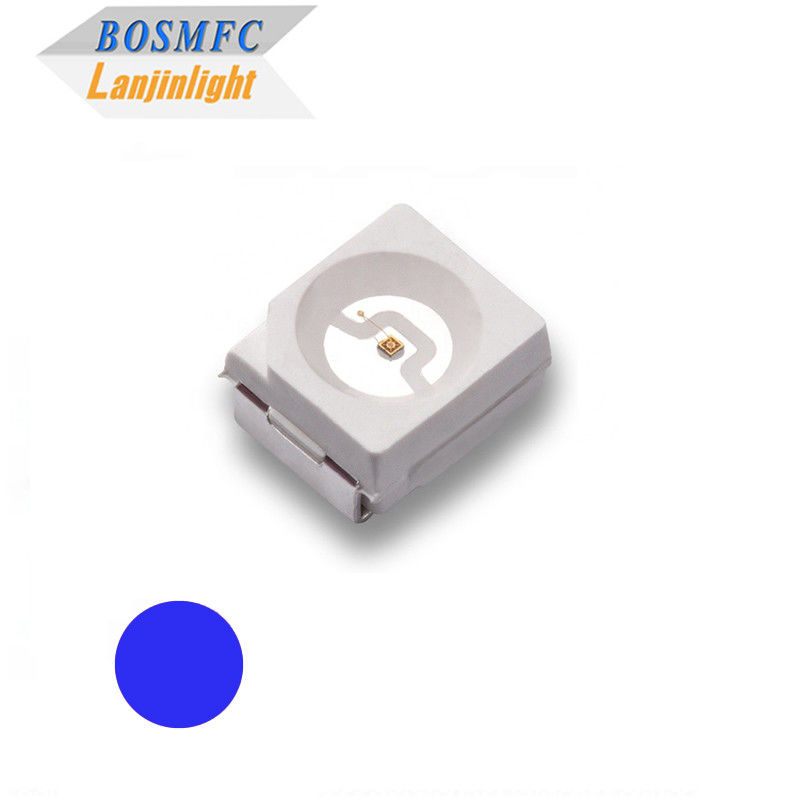

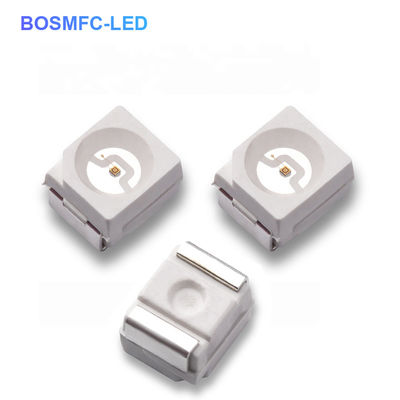

3528 SMD LED blue San'an chip LED for LED light strip
3528 SMD LED---Lanjin catalog.pdf
Description:
The 3528 SMD LED in blue with San'an chip is a high-quality LED designed for LED light strip applications. It features a compact size and efficient design, making it ideal for creating vibrant blue lighting effects in various settings.
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Blue | 460 | --- | 472 | nm | IF=20mA |
| Luminous intensity | Iv | Blue | 300 | --- | 600 | mcd | IF=20mA |
| Forward voltage | VF | Blue | 2.8 | --- | 3.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | Blue | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*1.9mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Brake Light , Turn light , Daytime Running Light ,In-vehicle lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
