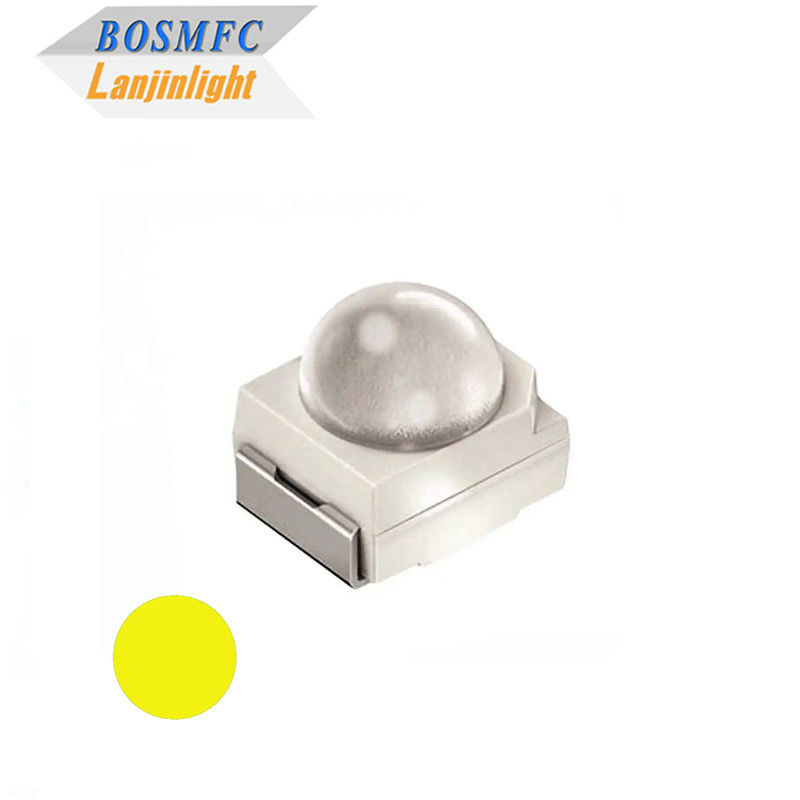

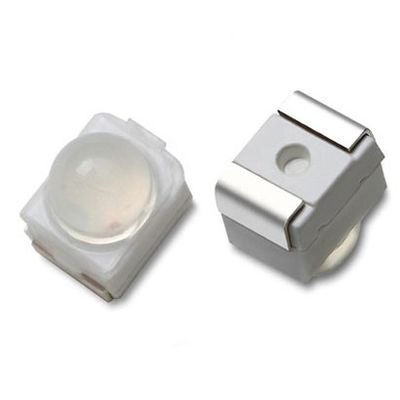

3528 SMD LED Yellow light viewing angle 60 degrees dome lens Amber led diode light for traffic light
3528 SMD LED---Lanjin catalog.pdf
Features:
- 99.99% gold wire bonding
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Yellow |
585 |
--- |
594 |
nm |
IF=20mA |
| Luminous intensity |
Iv |
Yellow |
1500 |
--- |
2000 |
mcd |
IF=20mA |
| Forward voltage |
VF |
Yellow |
1.8 |
--- |
2.3 |
V |
IF=20mA |
| Viewing angle |
|
|
--- |
60 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
Yellow |
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
3.5*2.8*3.3mm |
| Storage Temperature |
－40~+100℃ |
Packing |
2000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be customized according to your requirements.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very
soon (mostly within 3 hours).
Q3: Do you offer guarantee for the products?
A3: Yes,We offer 1-5 years warranty to your product.
Q4: How long of your delivery time?
A4: 5-7 days for samples, 2-4 weeks for mass order.
Q5: Can you accept OEM and ODM order?
A5: Yes. We accept OEM and ODM orders. pls tell us your detailed requirements!
Q6: What chip you usually use for your led?
A6: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
