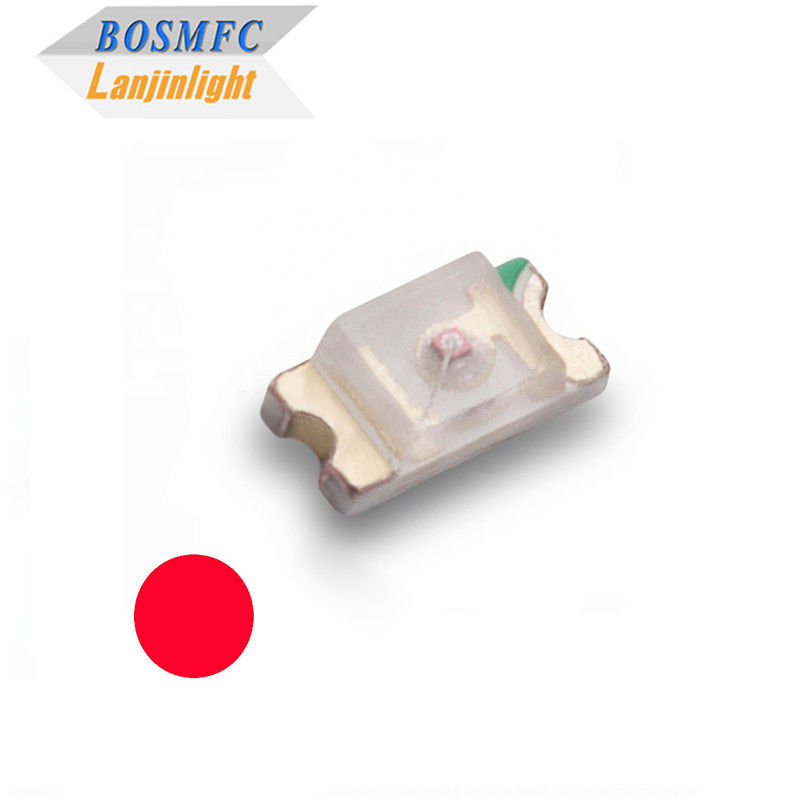

Anti Static Red 0603 Chip LED Automotive Electronics Power LED SMD 1608
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 0603 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06 W |
|---|---|---|---|
| Emitting Color: | Red | Wavelength: | 620-635nm |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4v |
| Luminous Flux: | 100-300mcd | Viewing Angle: | 120° |
| Size: | 1.6*0.8*0.6mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 0603 smd led strip,0603 smd led diode,0603 red smd led |
||
Product Description
0603 smd LED red lights LED chip for automotive electronics 1608 led diode China LED supplier
Product Description:
0603 SMD LED---Lanjin catalog.pdf

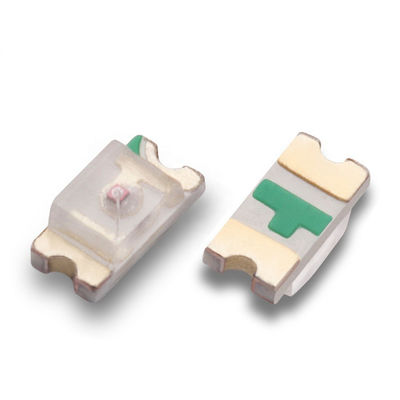

The 0603 SMD LED is a red lights LED chip designed for automotive electronics. It features a compact size of 1608 (1.6mm x 0.8mm x 0.6mm) and is supplied by a reliable LED supplier in China. This LED chip is suitable for various applications in the automotive industry.
Features:
- Energy-saving and environmentally friendly
- Long lifespan of 50,000 hours
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 0603 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red | 620 | --- | 635 | nm | IF=20mA |
| Luminous intensity | Iv | Red | 100 | --- | 300 | mcd | IF=20mA |
| Forward voltage | VF | Red | 1.8 | --- | 2.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | Red | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 1.6*0.8*0.6mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor lighting
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phones, digital cameras, flash photoelectric displays, backlight displays
- LED taillights, brake lights, turn lights, daytime running lights, license plate lamps, in-vehicle lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Why choose us?
Q1: Are you a factory or a trading company?
A1: We are a professional LED manufacturer specializing in producing various LED products, including SMD LEDs, through-hole LEDs, and LED displays. We provide OEM and ODM services to partners worldwide.
Q2: Can I get samples for testing?
A2: Yes, we welcome sample orders to allow you to evaluate the quality of our LEDs.
Q3: Is there a discount for bulk orders?
A3: Yes, we offer wholesale pricing for bulk orders and can also customize products according to your requirements.
Q4: What factors should I consider when choosing an LED light source?
A4: Important factors to consider include lumens (LM), light efficiency (LM/W), and lifespan (hours). Higher values indicate better performance. Additionally, the brand of the LED chip, LED frame, and other materials used can influence product reliability.
Q5: What is the order process?
A5: The order process involves the following steps:
- Share your requirements or application with us.
- We will provide a quotation based on your requirements or offer our suggestions.
- Once you confirm the samples and place an order, we will arrange production.
