0805 SMD LED blue light emitting diode chip china 18 years led factory
0805 SMD LED---Lanjin catalog.pdf
Features:

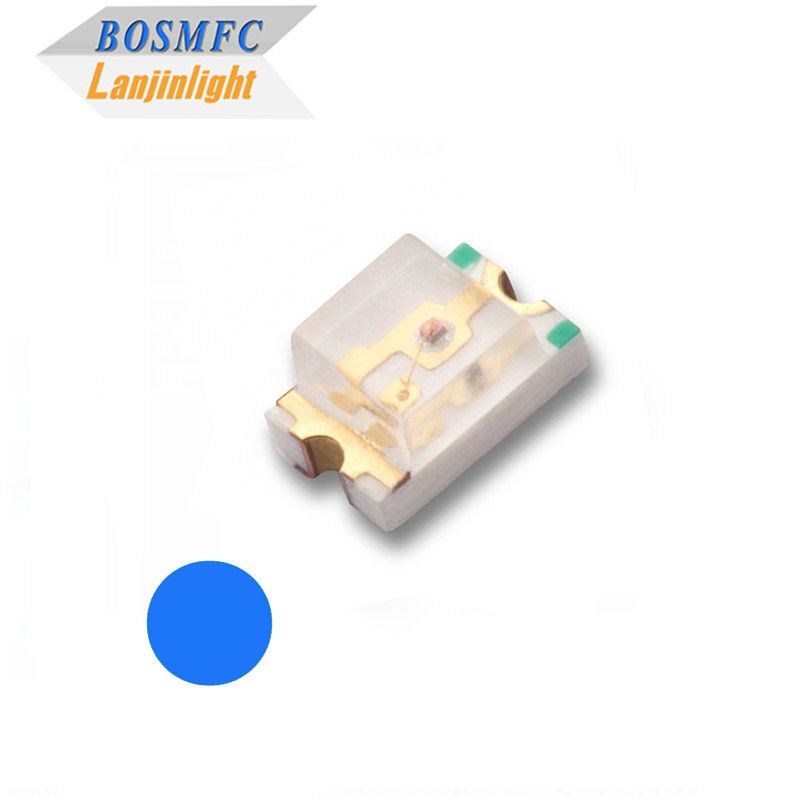

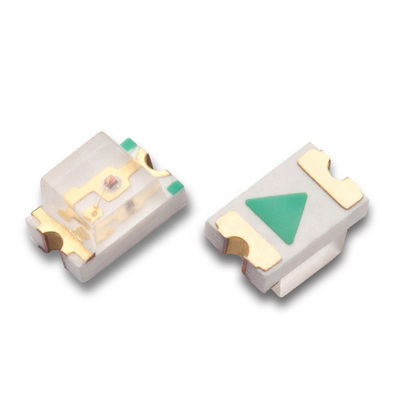

The 0805 SMD LED is a blue light emitting diode chip manufactured in China by a reputable LED factory with 18 years of experience. It is a compact and efficient LED chip designed for various applications.
Features:
- Energy-saving and environmentally friendly
- Long lifespan of up to 50,000 hours
- Good heat dissipation properties
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certified
Technical Parameters:
Electrical optical characteristics of 0805 Top smd led:(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Blue |
460 |
--- |
473 |
nm |
IF=20mA |
| Luminous intensity |
Iv |
Blue |
100 |
--- |
300 |
mcd |
IF=20mA |
| Forward voltage |
VF |
Blue |
2.8 |
--- |
3.4 |
V |
IF=20mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
Blue |
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
2.0*1.2*1.1mm |
| Storage Temperature |
－40~+100℃ |
Packing |
3000pcs/reel |
Applications:
The 0805 SMD LED is suitable for both indoor and outdoor lighting applications. It can be used in:
- Commercial lighting
- LED backlights and SMD type indicators
- LED modules and strip lights
- Decorative lighting, including dashboards and switches
- Automotive lighting, such as tail lights, brake lights, turn lights, and license plate lamps
- Mobile phones, digital cameras, and flash photoelectric displays
- LED grow lights for indoor gardening
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a professional LED manufacturer with 18 years of experience. We provide OEM and ODM services to partners worldwide.
Q2: Can I get samples for testing?
A2: Yes, we welcome sample orders for evaluating our LED quality.
Q3: Is there a discount for bulk orders?
A3: Yes, we offer wholesale pricing for bulk orders and customized products.
Q4: How do I choose the right LED light source?
A4: When choosing an LED light source, consider factors such as lumens (LM), light efficiency (LM/W), and lifespan (hrs). Higher values indicate better performance. Additionally, the brand of the LED chip, LED frame, and other materials can influence product reliability.
Q5: How do I place an order?
A5: To place an order, follow these steps:
1.Provide your requirements or application details.
2.We will provide a quotation based on your requirements or our suggestions.
3.Confirm the samples and place your order. We will arrange production accordingly.
