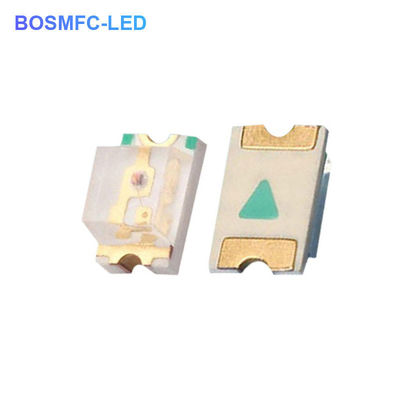

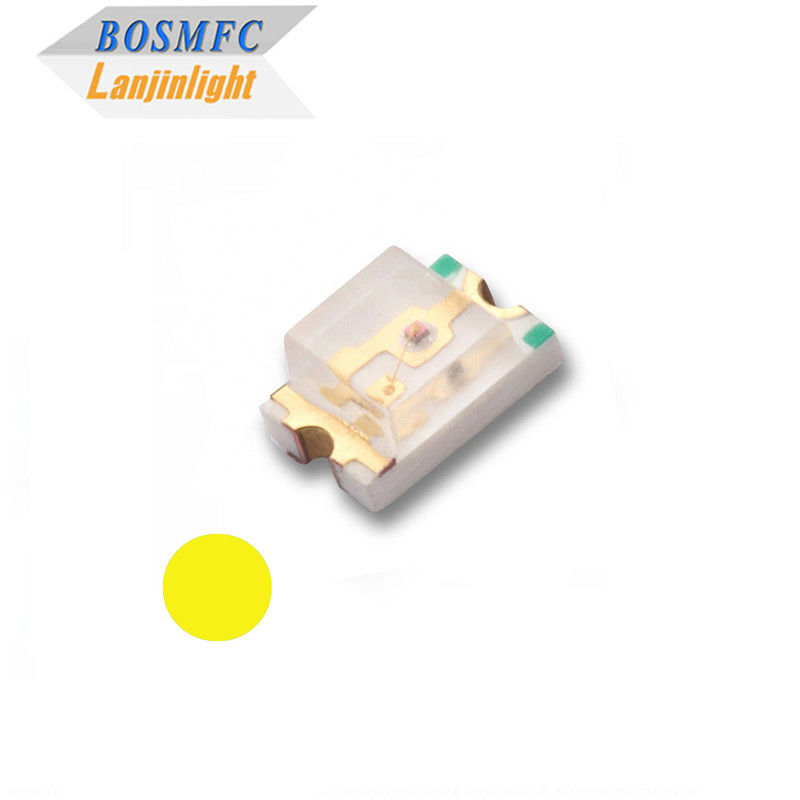

Super bright 20mA LED surface mount 0805 Micro Led Diode Yellow Led Light Chip Led
Product Description:
The Super bright 20mA LED surface mount 0805 Micro Led Diode is a yellow LED light chip. It is designed for surface mounting and has a compact size of 2.01.21.1mm. With a forward current of 20mA and a forward voltage of 1.8-2.4v, this LED offers a luminous flux of 100-300mcd and a viewing angle of 120°. It operates within a wide temperature range of -40 to +85℃ and has a long lifespan of 50,000 hours. The LED chip is available in a reel packaging with 3000pcs per reel.
Features:
- Energy-saving and environmentally friendly
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certified
Technical Parameters:
Electrical optical characteristics of 0805 Top smd led:(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Yellow |
584 |
--- |
596 |
nm |
IF=20mA |
| Luminous intensity |
Iv |
Yellow |
100 |
--- |
300 |
mcd |
IF=20mA |
| Forward voltage |
VF |
Yellow |
1.8 |
--- |
2.4 |
V |
IF=20mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
Yellow |
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
2.0*1.2*1.1mm |
| Storage Temperature |
－40~+100℃ |
Packing |
3000pcs/reel |
Applications:
This LED chip is suitable for both indoor and outdoor lighting applications. It can be used in commercial lights, LED backlights, SMD type indicators, LED modules, LED strip lights, decorative lights, automotive electronics, traffic lights, mobile phones, digital cameras, and more.
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Why choose us?
Q1: Are you a factory or a trade company?
A1: We are a professional LED manufacturer specializing in SMD LEDs, through-hole LEDs, and digital LED displays. We offer OEM and ODM services to partners worldwide.
Q2: Can I get samples for testing?
A2: Yes, we welcome sample orders for testing and evaluating our LED quality.
Q3: Is there a discount for bulk orders?
A3: Yes, we provide wholesale pricing for bulk orders and customized products.
Q4: How do I choose an LED light source?
A4: When choosing an LED light source, consider factors such as lumens (LM), light efficiency (LM/W), and lifespan (hrs). Higher values indicate better performance. Additionally, the brand of the LED chip, LED frame, and other materials can influence product reliability.
Q5: How do I place an order?
A5: The order process involves:
- Sharing your requirements or application with us.
- We will provide a quotation based on your requirements or suggestions.
- Once the samples are confirmed, you can place the order, and we will arrange production.
