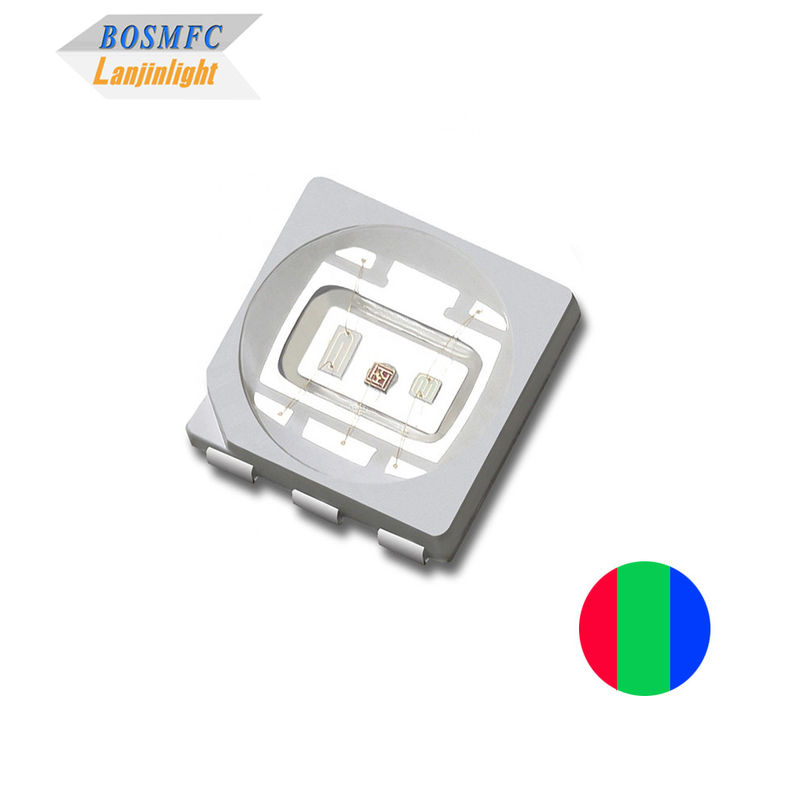

0.5W 0.6W 5050 RGB LED Tri Color Durable For Stage Light Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 200mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm |
| Luminous Intensity: | 2200/ 5500/ 1200 Mcd | Forward Current: | 60mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 5.3*5.0*1.1mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 5050 Tri Colour led lamp,super bright smd 5050 led chip,led pcb smd 5050 |
||
Product Description
0.5w 5050 RGB LED 0.6w tri-color SMD led light factory sell for stage light lamp
5050 RGB SMD LED---Lanjin catalog.pdf
Features:
- Well-known chip brands material
- 99.99% pure gold wire bonding
- High flux per LED
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Low Voltage DC operated
- Long lifespan 50,000 hours
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 635
525 470 |
nm | IF=60mA |
| Luminous intensity | Iv | Red
Green Blue |
2200
5500 1200 |
mcd | IF=60mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 5.3*5.0*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
The 5050 RGB LED Diode is suitable for both indoor and outdoor lighting applications. Some common applications include:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Front panel backlighting
- Full-color strip lighting
- Status indicators
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can I get some free samples for confirmation?
A: Yes, we welcome samples to check our LED quality and performance. Free samples according to your requirement.
Q2: What about the lead time?
A: Sample needs about 3 working days. Customized products need 5-7 working days. Mass production 10-15 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: How do you ship the goods and how long it will take?
A: Generally we ship the goods to you door to door by DHL, UPS, FEDEX, TNT express.
It will take 2-4 working days. And Air transportation and Sea shipping is also available.
Q5: How do you deal with the LED Failure issue?
A: Our engineer will analyze the failure and find out the failure cause according to the failed
products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others.
