PLCC6 020 Side View LED RGB Full Color For Flexible LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 020 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 466-472 Nm |
| Luminous Intensity: | 160 / 550/ 110 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 4.45*1.0*0.8mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 5000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 020 PLCC6 Side View LED,multicolor led light strip,020 Full Color led chip |
||
Product Description

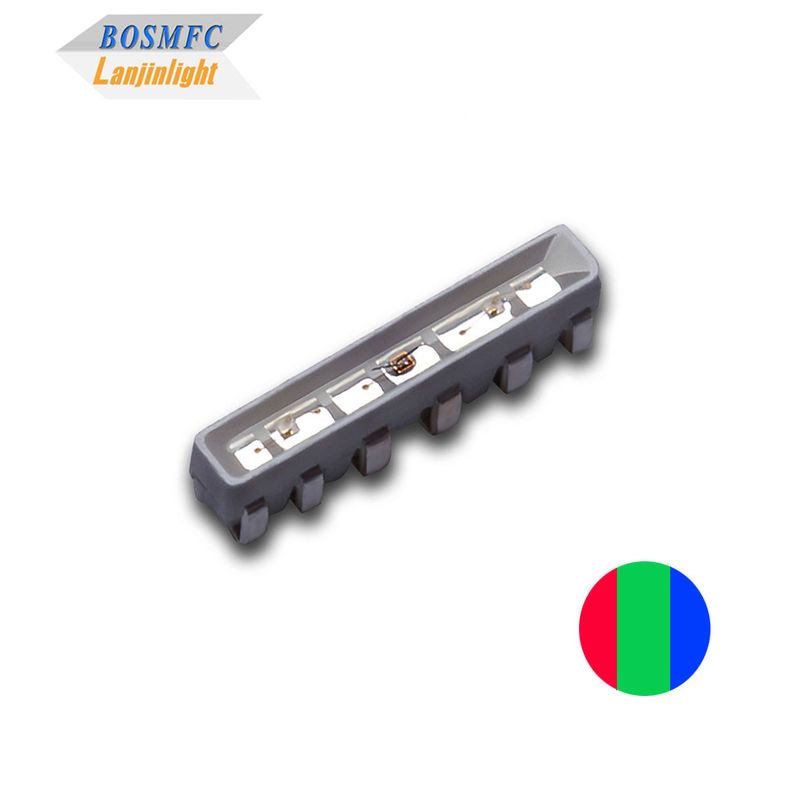

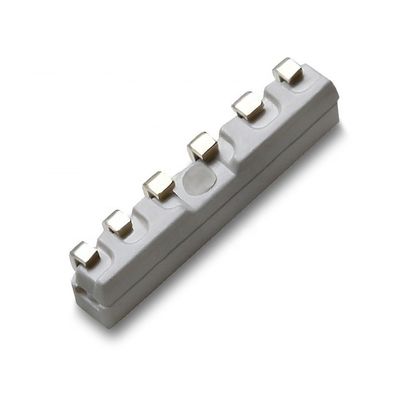

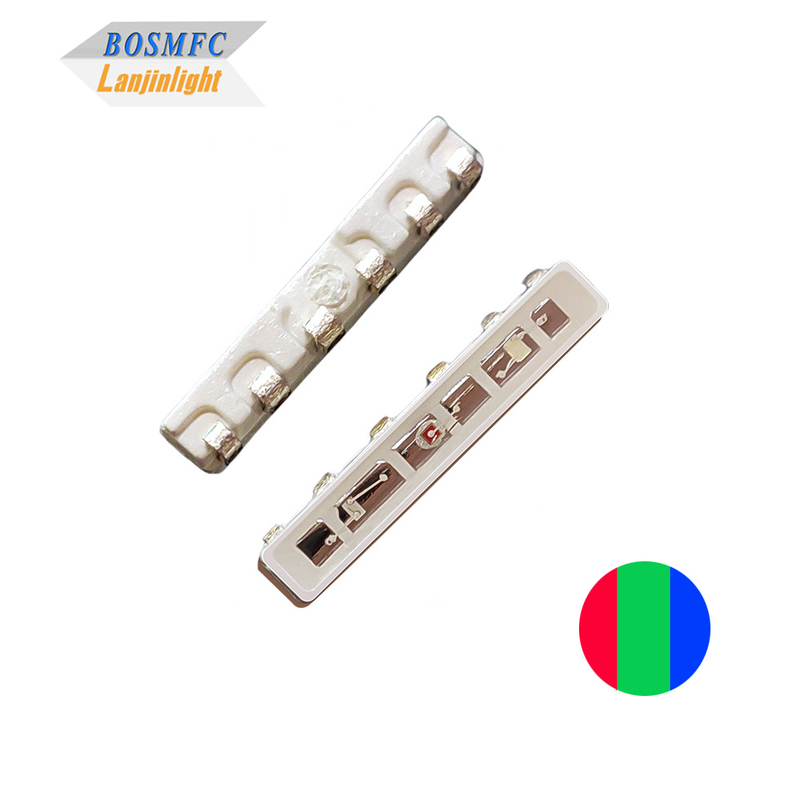

Side view PLCC6 020 RGB LED Epistar chip led for flexible full color led strip
020 Side View RGB LED ---Lanjin catalog.pdf
The 020 side view RGB LED is capable of producing a full spectrum of colors, making it ideal for creating vibrant and customizable lighting effects in flexible LED strips.
Features:
- Well-known Brand chip material
- More energy efficient than incandescent & halogen lamp
- Low power consumption & high intensity
- Long lifespan
- RoHS certified
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 466 |
--- | 635
530 473 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
1300
2200 800 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 4.45*1.0*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Applications:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Automotive lamps and electronics, including traffic lig
- Full-color strip lighting
- LED taillights, brake lights, license plate lamps, and in-vehicle lighting
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you accept OEM and ODM order?
A4: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will take time to customize them.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
