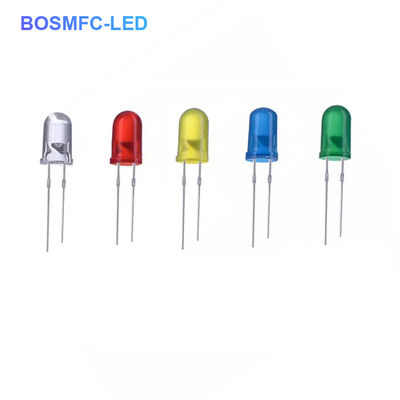

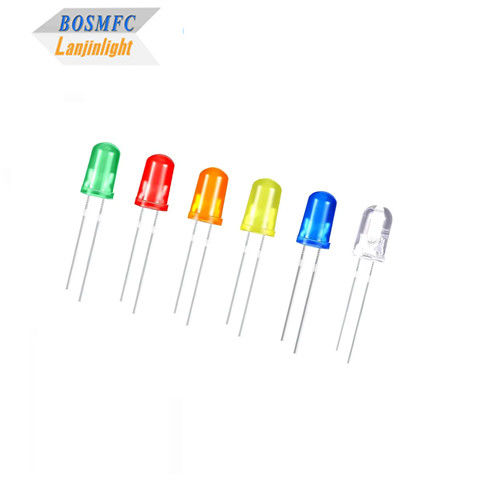

5mm through-hole LED light diode Epistar chip White/red/green/blue/yellow/orange F5 dip led lamp
Features:
- Well-known chip material
- 99.99% gold wire bonding
- Low power consumption, high intensity, uniform illumination
- Instant light(less than 100ns)
- Low-temp & lead free reflow soldering
- Superior ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red
Green
Blue
Yellow green
Yellow
Orange
White
|
620
520
466
568
584
600
2800K
|
--- |
630
530
472
576
596
610
12,000K
|
nm
|
IF=20mA |
| Luminous intensity |
Iv |
Red
Green
Blue
Yellow green
Yellow
Orange
White
|
|
220
2500
300
100
400
300
7000
|
|
mcd |
IF=20mA |
| Forward voltage |
VF |
Red
Green
Blue
Yellow green
Yellow
Orange
White
|
1.8
2.8
2.8
1.8
1.8
1.8
2.8
|
--- |
2.4
3.4
3.4
2.4
2.4
2.4
3.4
|
V |
IF=20mA |
| Viewing angle |
|
|
--- |
30 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
|
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
5mm |
| Storage Temperature |
－40~+100℃ |
Packing |
500pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- LED modules and LED strip lights
- Craft flashlights, headlights, Reading light, LED torch
- Automotive lamps and electronics , traffic lights
- LCD TV/monitor backlights
- Decorative lighting, indicator lights
- Indoor and outdoor light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are a professional LED factory 18 years , produce SMD LED, through-hole LED ,digitial LED display etc, Welcome to your visiting!
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements or product application, Our professional team will respond to you within one hour.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: What about the lead time?
A4: In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q5: Is there any discount for bulk order?
A5: Yes, For bulk and customized products, we will provide discounts according to your order quantity.
Q6: How do I process an order?
A6:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
