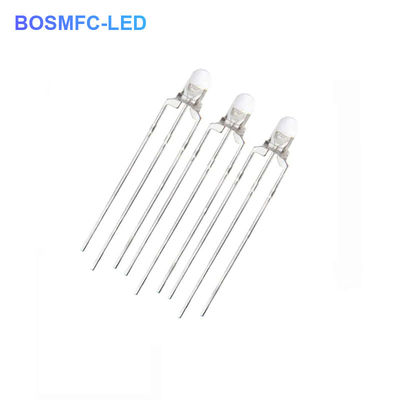

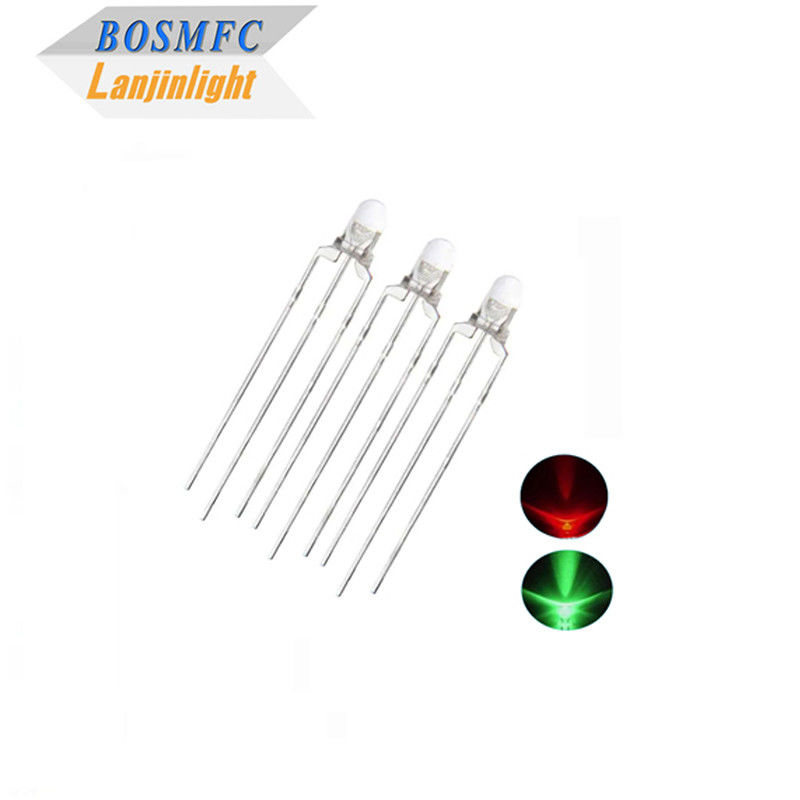

Bi Color 3mm Through Hole LED Multifunctional 20mA Red & Green Light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | Red & Green | Wavelength: | 620-625nm , 525-530 Nm |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4/2.8-3.4 |
| Size: | 3mm | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 1000pcs/bag |
| Lifetime: | 50000h | Operating Temperature: | -40℃~85℃ |
| Reverse Voltage: | 5V | Storage Temperature: | -40℃~100℃ |
| Highlight: | 3mm Red & Green Light,3mm Bi Color Through Hole LED,Through Hole LED Multifunctional |
||
Product Description
Bi-color LED 3mm through-hole LED lamp red & green F3 dip LED dual colors factory sell
Features:
- Long lifespan 50,000 hours
- 99.99% gold wire bonding
- Low-temp & lead free reflow soldering
- Maintenance free, easy installation
- More energy efficient than incandescent and halogen lamps
- Instant light(less than 100ns)
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green |
620
520 |
--- | 630
530 |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green |
200
2000 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green |
1.8
2.8 |
--- | 2.4
3.4 |
V | IF=20mA |
| Viewing angle | --- | 30 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- Telecommunication, office automation, home appliances, industrial equipment
- Mobile phones, flash photoelectric displays.
- Automotive lamps and electronics , traffic lights
- LED modules and LED strip lights
- Decorative lights, indicator lights
- Indoor and outdoor commercial lights
Materials:
