3535 SMD UVC UV LED Chip 3939 10mW 15mW 270nm 275nm 280nm For LED Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | UVC 3939 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 1000pcs/reel |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Color: | UVC Light | Wavelength: | 275nm |
|---|---|---|---|
| Forward Voltage: | 5-8V | Viewing Angle: | 120° |
| Lifespan: | 50,000hrs | Operating Temperature: | -40~85℃ |
| Storage Temperature: | -40~100℃ | ||
| Highlight: | UV LED Chip 10mW,UV LED Chip 15mW,Lamp 3535 SMD LED |
||
Product Description
UVC 3535 SMD LED 10mW 15mW 270nm 275nm 280nm 3939 UV LED Chip Ultra Violet light deep uv led lamp

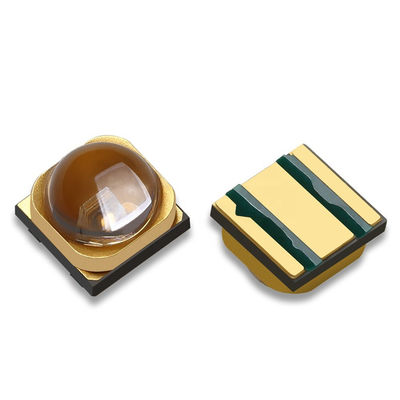

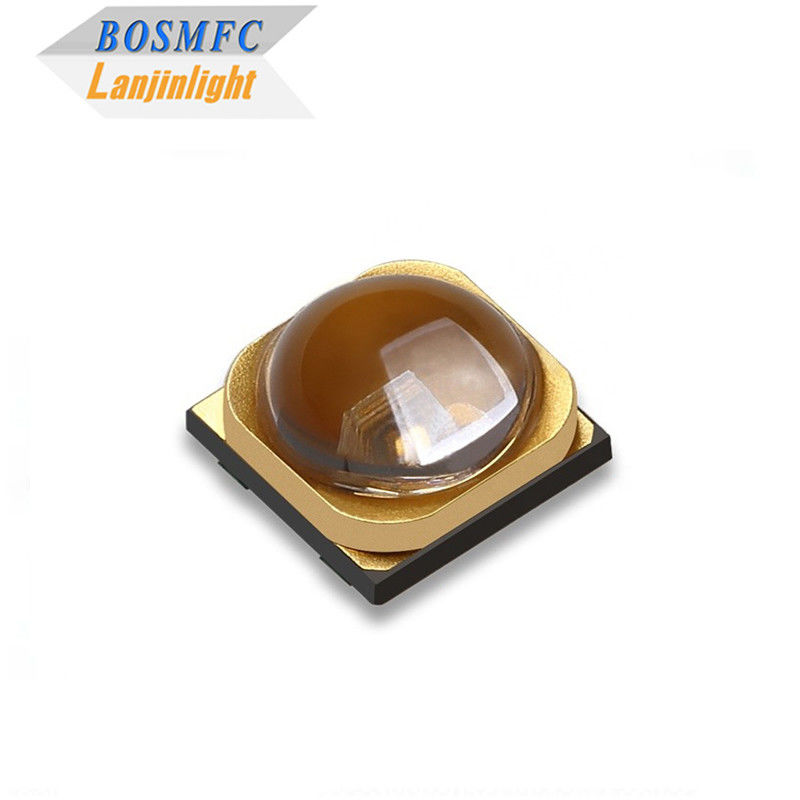

The UVC 3535 SMD LED is a surface-mounted LED chip that emits ultraviolet (UV) light in the deep UV range. It is available in two power options, with power outputs of 10mW and 15mW respectively. The LED chip operates at wavelengths of 270nm, 275nm, and 280nm, which are within the UV-C spectrum. This LED chip, known as the 3939 UV LED chip, is specifically designed for applications that require deep UV light. It is commonly used in the manufacturing of deep UV LED lamps and other devices that utilize ultraviolet light in this wavelength range.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 270 | --- | 285 | nm | IF=100mA |
| Power dissipation | Pt | UV | 10 | --- | 15 | mW | IF=100mA |
| Forward voltage | VF | UV | 5 | --- | 8 | V | IF=100mA |
| Viewing angle | --- | 120 | --- | deg | IF=100mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=100mA |
| Operation Temperature | －40~+85℃ | Size | 3.9*3.9*3.5mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Applications:
- Printing and Glue Curing
- Plant Grouth Light Source
- Mosquito and Insect Trapping
- Fluorescent Lighting
- Jewelry and Jade Detection
- MedicalDetection and Nail Enhancement
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
