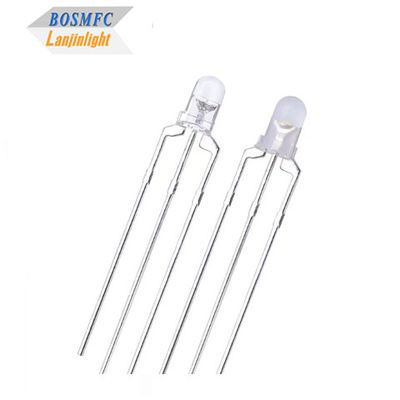

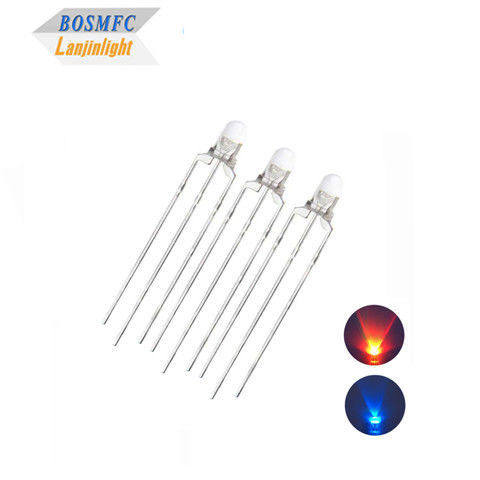

Bi color 3mm LED Red & blue commom anode and commom cathode Through Hole LED Heat Dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor/Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | Red & Blue Light | Wavelength: | 625nm / 460nm |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.3v / 2.8-3.6v |
| Size: | 3mm | Warranty: | 2 Years |
| Chip Brand: | San'an Chip/ Epistar Chip | Package: | 1000pcs/bag |
| Lifetime: | 50,000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 3mm Bi Color LED,3mm Red and blue LED,F3 LED Light |
||
Product Description
Bi color 3mm LED Red & blue commom anode and commom cathode Through Hole LED Heat Dissipation
Features:
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Blue |
620
460 |
--- | 630
472 |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Blue |
220
300 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Blue
|
1.8
2.8 |
--- | 2.4
3.4 |
V | IF=20mA |
| Viewing angle | 80 | --- | 160 | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- LED modules and LED strip lights
- Craft flashlights, headlights, Reading lights, LED torch
- Automotive lamps and traffic lights
- LCD TV/monitor backlights
- Decorative lights and indicator lights
- Indoor and outdoor lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. What information do you need if we want to custom product?
A1: Please send your drawings or samples to us.
Q2. How long of your delivery time?
A9: 3-5 days for samples, 2-4 weeks for mass order.
Q3. Do you provide free samples for testing?
A: yes, usually we provide 10-50pcs free samples.
Q4. How do you ship the goods and how long does it take to arrive?
A: usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What payment term do you accept?
A5: We accept T/T, Paypal, Western Union .
Q6: How we can trust your quality?
A6: All materials are accordant with RoHs standard, and 100% tested before delivery.
