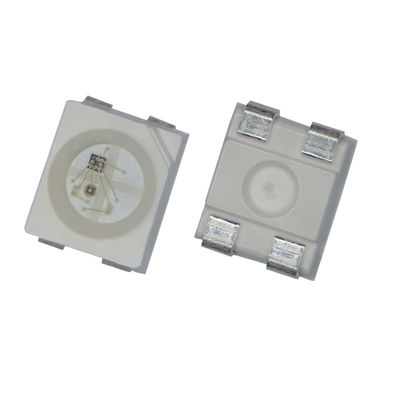

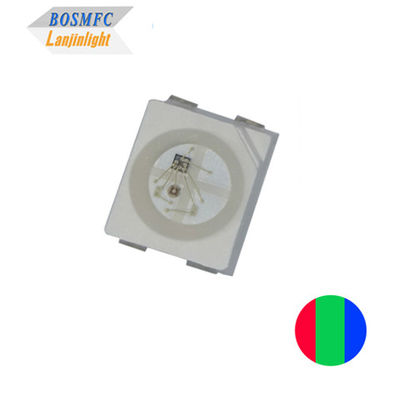

IC Driving 3528 SMD RGB LED 4 Pin Super Bright PLCC4 SMD Multicolor LED For LED Strip
High-Quality Full Color RGB SMD LED with Built-in IC
The Built-in IC SMD 3528 RGB LED is a premium LED diode manufactured by an experienced Chinese LED manufacturer with 18 years of expertise. Featuring a compact SMD 3528 package and incorporating SK6812 and WS2811 ICs, this LED enables full-color illumination and versatile control options for LED strip applications.
Product Features
- Pure gold wires bonding for superior connectivity
- Long life span of 50,000 hours
- Pb-free and radiation-free construction
- Low-temperature & lead-free reflow soldering compatible
- Efficient heat dissipation design
- Energy-saving and environmentally friendly
Technical Specifications
Electrical Optical Characteristics (Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red |
625 |
--- |
635 |
nm |
IF=12mA |
| Green |
525 |
--- |
535 |
| Blue |
466 |
--- |
472 |
| Luminous intensity |
Iv |
Red |
|
500 |
|
mcd |
IF=12mA |
| Green |
|
2000 |
|
| Blue |
|
500 |
|
| Forward voltage |
VF |
Red |
3.5 |
--- |
5.5 |
V |
IF=12mA |
| Green |
3.5 |
--- |
5.5 |
| Blue |
3.5 |
--- |
5.5 |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=12mA |
| Reverse current |
IR |
|
|
--- |
5 |
uA |
IF=12mA |
Additional Specifications
Operation Temperature: -40°C to +85°C
Size: 3.2 × 2.8 × 1.9 mm
Storage Temperature: -40°C to +100°C
Packing: 2000 pcs/reel
Applications
- Automobile luminous signs, magic LED handbags, LED smart women jewelry, dream color shoes
- Mobile phones, digital cameras, flash photoelectric displays
- Dynamic and colorful lighting effects in buildings, bridges, and architectural structures
- LED flexible full-color pixel screens, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED color models, keyboards, smart bracelets, angel eyes, full color LED displays
Materials
Company Information
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
Packing and Shipping
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing
Frequently Asked Questions
Q1: Are you a factory?
A: Yes, we are an LED factory located in Dongguan city. We welcome your visit!
Q2: Could you please send me free samples to check quality?
A: Yes, we will provide free samples according to your requirements.
Q3: Can you accept OEM and ODM orders?
A: Yes, we can complete your OEM and ODM orders. We maintain large quantities of LED products in stock for normal models, while special models require customization time.
Q4: How do you ship goods and how long does delivery take?
A: We typically ship via DHL, UPS, FedEx, or TNT, with delivery taking 3-5 days. Airline and sea shipping options are also available.
Q5: How to proceed with an order for LED lights?
A: 1. Inform us of your requirements or application.
2. We provide quotations based on your requirements or our suggestions.
3. Customer confirms samples and places deposit for formal order.
4. We arrange production.
