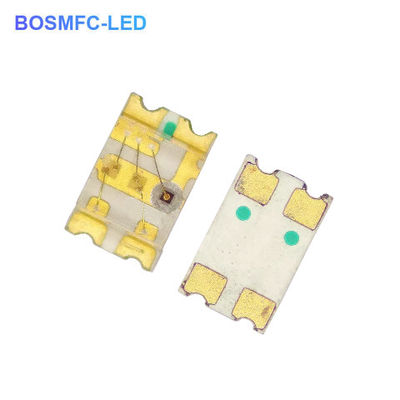

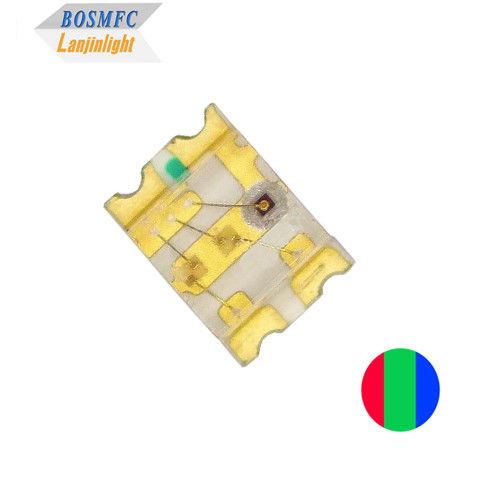

0805 RGB SMD 2012 tri-color LED chip for Dynamic Lighting
2023 new Lanjin catalog.pdf
Features:
- RoHS Approved;
- Wide View angle: 120degree
- Low light decay.
- High luemens, high color rendering index;
- LED chip: Epistar
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red
Green
Blue
|
625
525
466 |
--- |
635
535
472 |
nm |
IF=20mA |
| Luminous intensity |
Iv |
Red
Green
Blue
|
|
160
500
150
|
|
mcd |
IF=20mA |
| Forward voltage |
VF |
Red
Green
Blue
|
1.8
2.8
2.8
|
--- |
2.4
3.4
3.4
|
V |
IF=20mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
|
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
2.0*1.25*1.05mm |
| Storage Temperature |
－40~+100℃ |
Packing |
3000pcs/reel |
Applications:
- Telecommunication, office automation, home appliances, industrial equipment
- Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, backlighting in dashboards.
- Full-color flexible led strip lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, well come to your visting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A2: Yes. We could offer free samples 1-50 pcs.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you provide customization and OEM service?
A4: Yes, we offer customization and OEM service, please tell us your requirements clearly.
Q5: Do you offer guarantee for the products?
A5: Yes,We offer 1-3 years warranty to your product.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
