3538 RGBW LED Full Color 3535 RGB LED Chip For Flexible Multi Color LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3538 RGBW SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | R: 60mW, G/B: 110mW; W: 80mW |
|---|---|---|---|
| Color: | RGBW Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm/white |
| Luminous Intensity: | R:600-800mcd, G:1600-1800mcd, B:500-600mcd, W:10-12lm | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v/2.8-3.4v | Size: | 3.85*3.5*1.1mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 2000pcs/reel | Lifetime: | 60000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 3535 Multi Color LED Strip,3535 rgb smd led datasheet,3538 RGBW LED |
||
Product Description

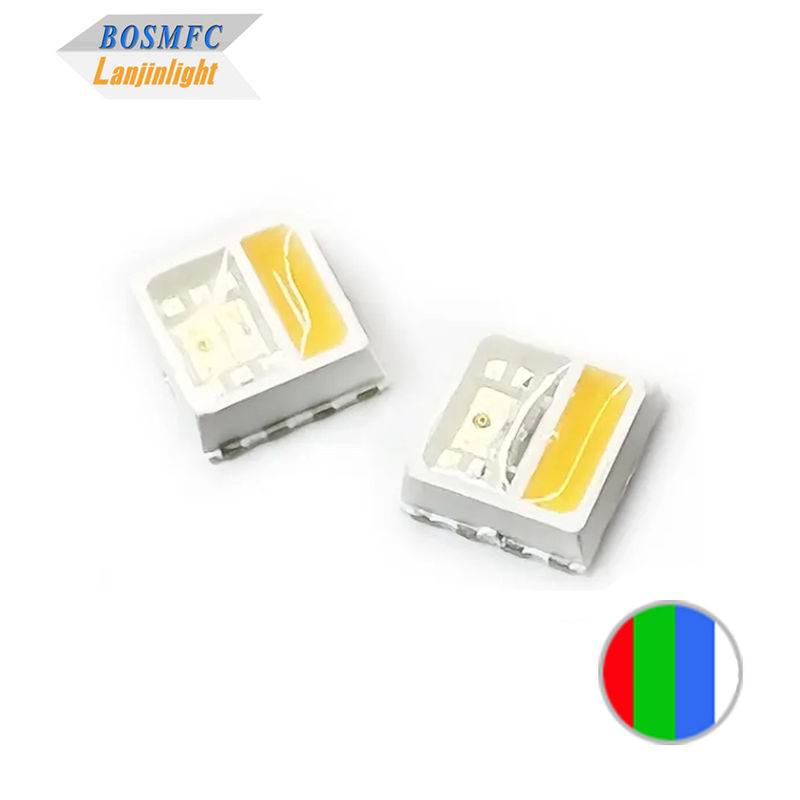

3538 RGBW LED full color LED 3535 RGB LED chip For flexible Multi Color LED Strip
The 3538 RGBW SMD LED diode is specifically engineered to provide vibrant and dynamic lighting effects in multi-color LED strips, making it suitable for various applications where customizable and multi-colored illumination is desired.
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
620
515 460 2700 |
--- | 635
525 473 6500 |
nm
K |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue White |
800
1600 500 10 |
mcd
lm |
IF=20mA | ||
| Forward voltage | VF | Red
Green Blue White |
1.8
2.8 2.8 2.8 |
--- | 2.4
3.4 3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.85*3.5*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Indoor and outdoor lighting
- Optical indicator, Indoor lighting, Interior automotive lighting,
- Backlight for LCD, switch and Symbol, display,
- Light pipe application, Advertisement, ect.
- Decoration light, LED module
- Auto lamp, automotive electronics, traffic lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome samples to check our LED quality and performance. Free samples according to your requirement..
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What payment terms are available?
A4: We accept T/T, Paypal, Western Union .
Q5. How to proceed an order for led light?
A5: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
