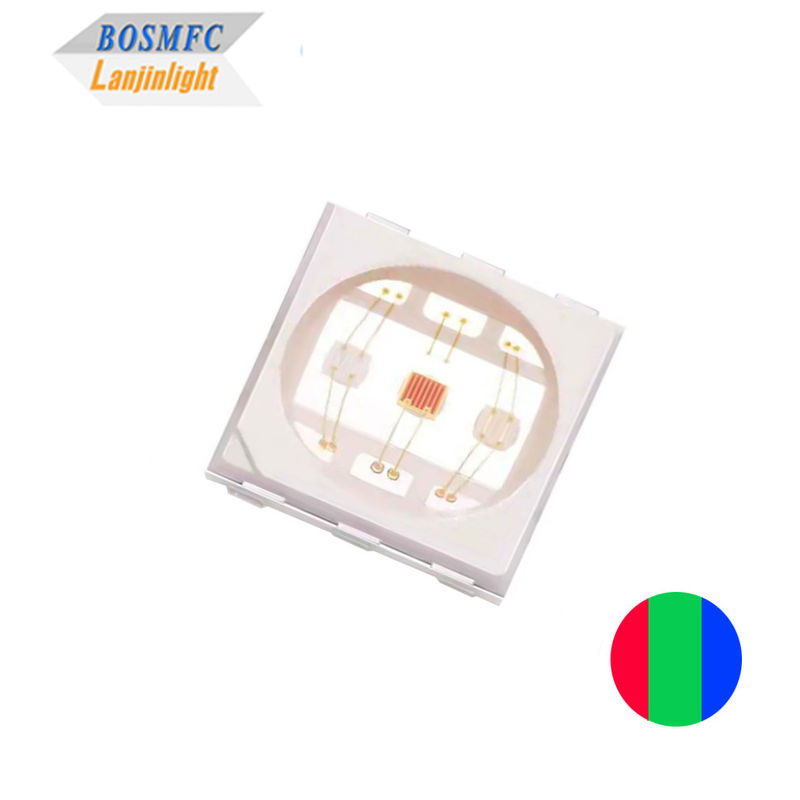

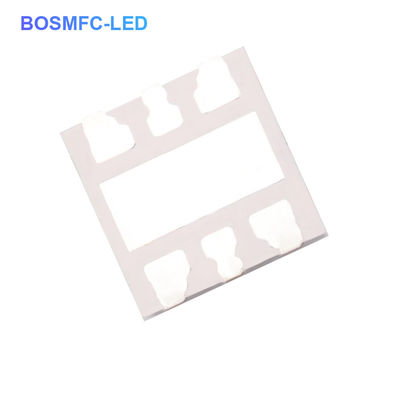

1.5W 3030 RGB LED 3w Full Color Led Chip For Outdoor Stage Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 200mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm |
| Luminous Intensity: | 22/ 38/ 8 LM | Forward Current: | 150mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 3.2*3.0*0.6mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 3030 Full Color Led Chip,3w rgb smd led,3030 rgb smd led |
||
Product Description
1.5W 3030 RGB LED 3w full color led chip for Outdoor Stage Lights
Features:
- Well-known chip brands material
- Energy-saving and environmentally friendly
- Long lifespan
- Efficient heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 635
525 470 |
nm | IF=150mA |
| Luminous intensity | Iv | Red
Green Blue |
22
38 8 |
LM | IF=150mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=150mA |
| Viewing angle | --- | 120 | --- | deg | IF=150mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=150mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*3.0*0.6mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Front panel backlighting
- Full-color strip lighting
- Status indicators
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are a professional LED manufacturer in Dongguan city 18 years, specialize in SMD LED, through-hole LED and LED displals.
Q2.Could you please send me the samples for comfirm the quality?
A2: Of course ,We can provide some free samples for our clients comfirm the quality.
Q3. What about the lead time?
A3:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q4. How to shipping ?
A4: (1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
Q5: Do you offer guarantee for the products?
A5: Yes, we offer 2-3 years warranty to our products.
Q6. Do you have any MOQ limit for the order?
A6: Low MOQ, 1pc for sample checking is available for most types.
Q7. How to proceed an order ?
A7: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
