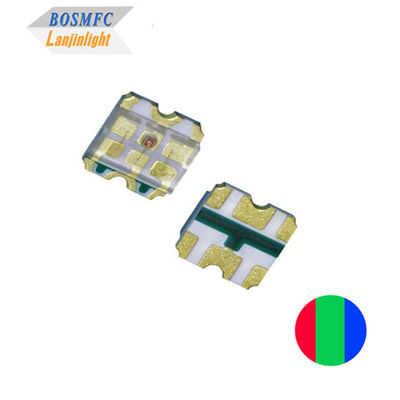

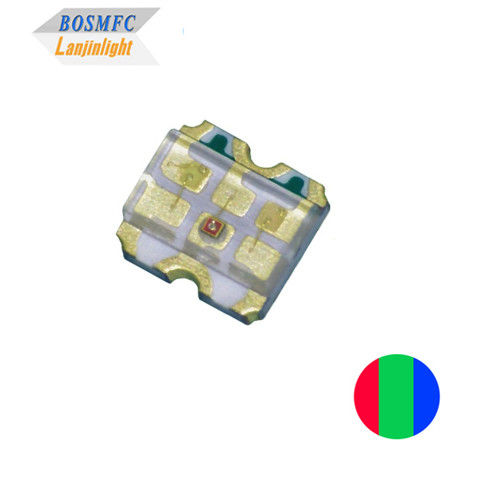

PLCC6 1615 tri-color LED 0.4mm T thickness 0603 RGB SMD LED For washing light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 0603 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 3000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 520-525 / 460-470 Nm |
| Luminous Intensity: | 120/ 350/ 180mcd | Forward Current: | 20mA |
| Forward Voltage: | 2.0-2.2/2.8-3.4 /2.8-3.4v | Size: | 1.6*1.6*0.4mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | PLCC6 1615 led,smd rgb led matrix panel,0603 Three Color RGB SMD LED |
||
Product Description
PLCC6 1615 tri-color LED 0.4mm T thickness 0603 RGB SMD LED For washing light
0603 RGB smd led chip---Lanjin catalog.pdf
Features:
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Meet RoHS Green Product
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 460 |
--- | 635
525 470 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
120
350 180 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
2.0
2.8 2.8 |
--- | 2.2
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 1.6*1.6*0.4mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
The 0603 RGB LED Diode is suitable for both indoor and outdoor lighting applications. Some common applications include:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Front panel backlighting
- Full-color strip lighting
- Status indicators
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q: Are you mamanufacturer?
A: Yes we are 18 years LED manufacturer in China.
Q: Do you provide samples?
A: Yes we can provide free samples according to customers requirements.
Q: What certificates does this product have?
A: We have CE, Reach, ROHS certified.
Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MoQ is open for discussion.
Q: What is depvery terms and time?
A: We use EXW , FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
