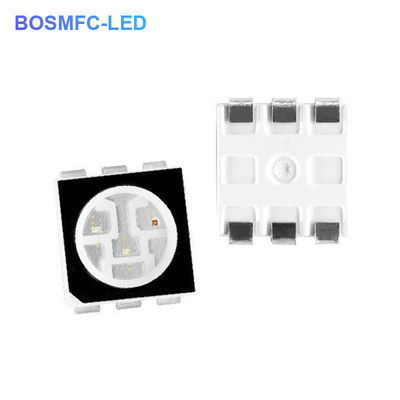

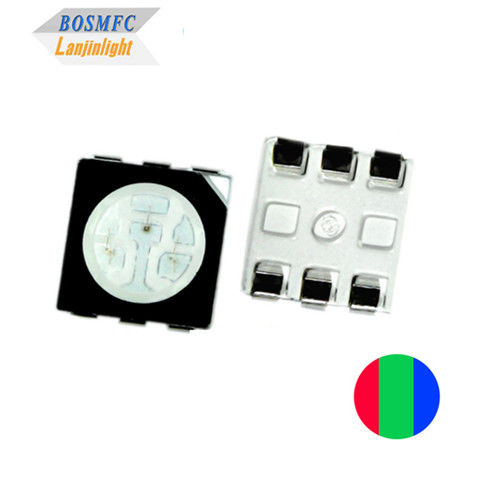

5050 Surface Mount Device Package RGB SMD LED for Indoor and Outdoor Applications
5050 RGB LED---Lanjin catalog.pdf
The 0.5W 5050 RGB LED and 0.6W Tri-color SMD LED are high-quality light-emitting diodes designed for stage lighting applications. These LEDs offer a range of features and are suitable for both indoor and outdoor lighting.
Features:
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red
Green
Blue
|
620
515
460 |
--- |
635
525
473 |
nm |
IF=20mA |
| Luminous intensity |
Iv |
Red
Green
Blue
|
|
450
1600
350
|
|
mcd |
IF=20mA |
| Forward voltage |
VF |
Red
Green
Blue
|
2.0
2.8
2.8
|
--- |
2.2
3.4
3.4
|
V |
IF=20mA |
| Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=20mA |
| Reverse current |
IR |
|
--- |
---- |
5 |
uA |
IF=20mA |
| Operation Temperature |
－40~+85℃ |
Size |
5.0*5.0*1.5mm |
| Storage Temperature |
－40~+100℃ |
Packing |
1000pcs/reel |
Applications:
- Indoor and outdoor lighting
- Optical indicator, Indoor lighting, Interior automotive lighting,
- Backlight for LCD, switch and Symbol, display,
- Light pipe application, Advertisement, ect.
- Decoration light, LED module
- Auto lamp, automotive electronics, traffic lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
|
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM and ODM services?
A1: Yes, we provide OEM and ODM services. We have over 15 years of experience in offering customized solutions.
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements, including product parameters, application, contact information, and quantity. Our professional team will respond to you within one hour.
Q3: Is there any discount for a bulk order?
A3: Yes, we offer wholesale prices for bulk orders or customized products.
Q4: What is the lead time for orders?
A4: The lead time depends on the order quantity. Generally, it takes about 10-15 working days. For standard samples, the delivery time could be as short as 3 days.
Q5: What payment terms are available?
A5: We accept T/T, PayPal, Western Union, and Secure Payment.
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
